BAKA Protect 4049 3D
Price range: £130.32 through £191.78
with comfortable eccentric 3D adjustment for unrebated flush timber entrance doors
Product features
- for unrebated timber entrance doors
- concealed receiver in the frame
- with comfortable eccentric adjustment
- comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 3,0 mm)
- internal hinge-pin
- maintenance-free slide bearings
Downloads
- Description
- Additional information
Description

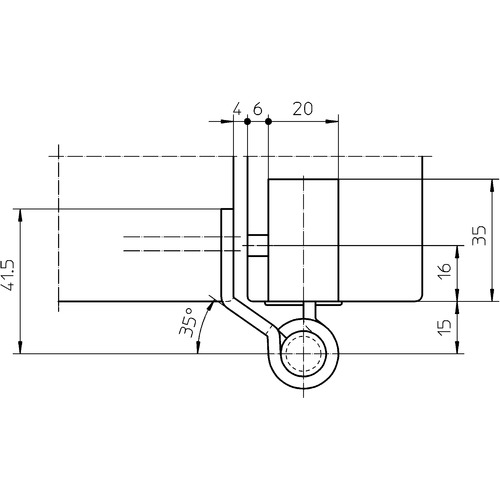

Technical details
Load capacity: 120.0 kg
Knuckle length: 140.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 20.0 mm
Collar ring diameter: 30.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: blind frame, block frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Set consists of 3 hinges (1 hinge = height and side adjustment, 2 hinges = compression and side adjustment).
If necessary, a 4th hinge has to be ordered separately.
Also available with security pin (MSTS).
Application accessories on request.
Finish
Additional information
| Finish | Satin Stainless Steel, RAL 9005 Matte Black |
|---|
