Delivery in 2-3 weeks
BAKA Protect 4060 3D FD
Price range: £111.14 through £130.32
with 3D comfortable eccentric adjustment for timber entrance doors and windows
Product features
- for rebated timber entrance doors
- concealed receiver in the frame
- for doors with overlap seals
- with comfortable eccentric adjustment
- 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 3,0 mm)
- usable for system testing in accordance with DIN EN 1627 ff.
- maintenance-free slide bearings
Downloads
- Description
- Additional information
Description

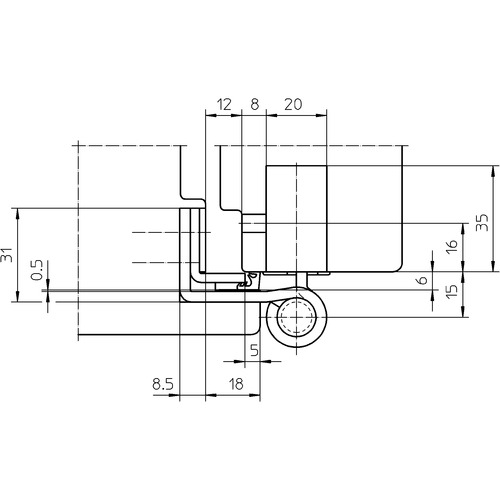

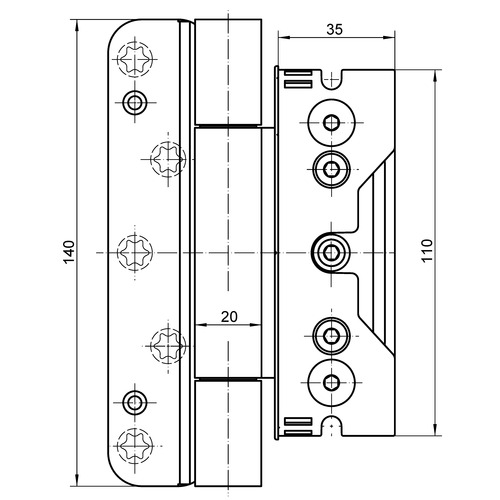

Technical details
Load capacity: 160.0 kg
Knuckle length: 140.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 20.0 mm
Collar ring diameter: 30.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame
Finish
Additional information
| Finish | H9 Brown, Topzinc |
|---|
