Delivery in 2-3 weeks

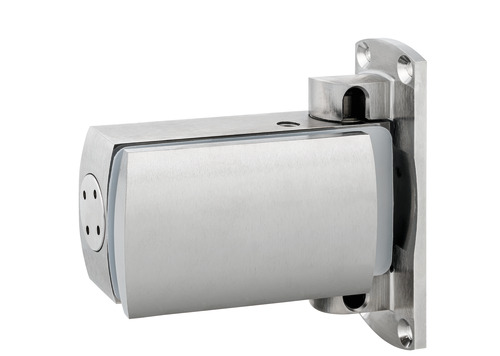

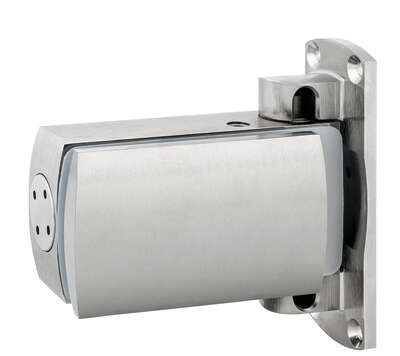

BL 8060 BT
Price range: £220.97 through £273.02
with single-sided fixing bracket (wall-glass) for single-action shower glass doors
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with single-sided fixing bracket
- with closing speed adjustment
- for applications in damp environments and high temperature
- o-rings of the hydraulic circuit are made of Viton
- pivot is made of stainless steel AISI 420
- hold open function at + 90°
- automatic closing from + 80°
Downloads
- Description
- Additional information
- More Products
Description
Finishes
Technical details
Load capacity: 100,0 kg
Overall length: 110,0 mm
Overall width: 112,0 mm
Overall depth: 51,5 mm
Opening angle: 90°
Hold open: + 90°
Automatic closing: + 80°
Glass thickness: 8 mm, 10 mm, 12 mm
Temperature range: – 15,0°C to + 100,0°C
Max. door width: 1000,0 mm
Suitable for
Type of door leaf: glass
Additional information
| Finish | Ev1 Satin Silver Natural, Satin Black, Similar Satin Stainless Steel, Polished Chromed, Matt Gray, Similar Polished Gold, Similar Matt Gold, Ral 9005 Jet Black Matt, Ral 9010 Pure White Matt, Ral 9016 Traffic White Matt |
|---|
