BZP RH French Lock Kit for 2284mm – No Slave Handle

BZP Winkhaus 1.77m AV2 LH Heritage Lock 45mmBS
BZP RH French Lock Kit for 2140mm – No Slave Handle

£405.70

SKU: 91894 Categories: , ,

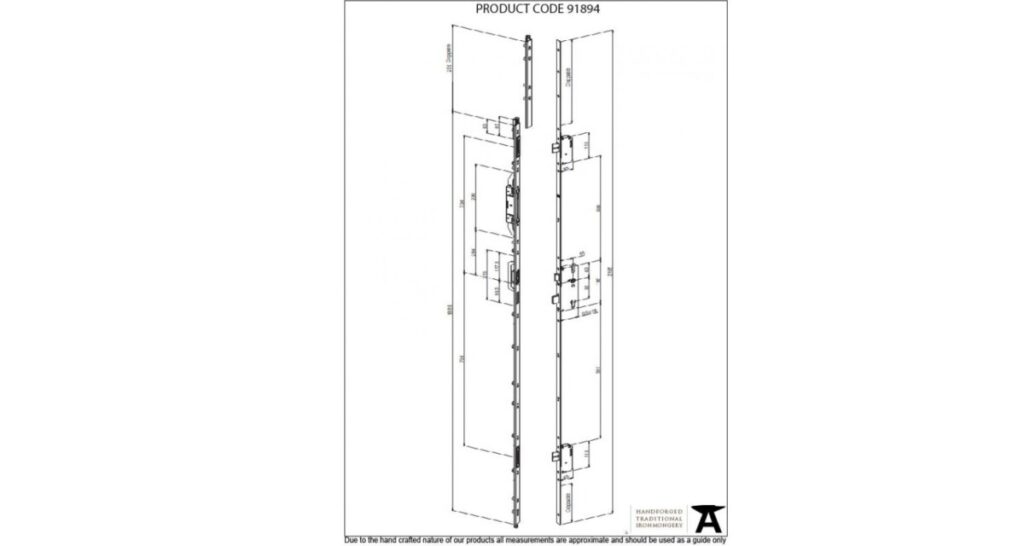

DIMENSIONS

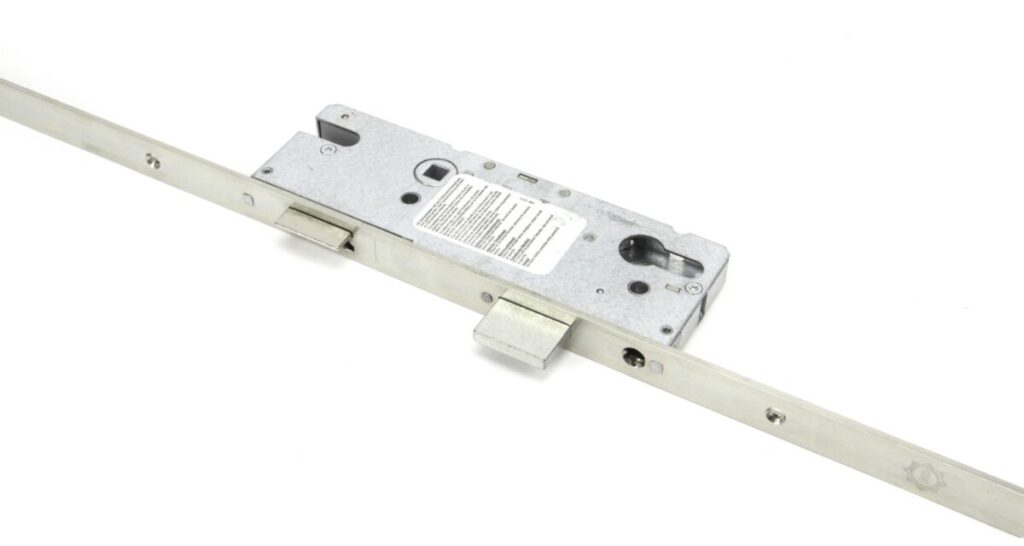

Master Lock: 20mm Face Plate
Backset: 45mm
Centre: 92mm
Slave Lock: 26mm Face Plate
Min Length: 2410mm
Max Length: 2284mm

For use with our 92mm centre espagnolette locking handle sets.

  • Kit includes: Master lock, slave lock, top bolt (for slave lock), top & bottom keeps.
  • The slave lock is operated by a flush, integrated two-way lever which throws two heavy duty 20mm shootbolts into the head and sill.
  • Please note 1 x euro cylinder needs to be purchased separately.
