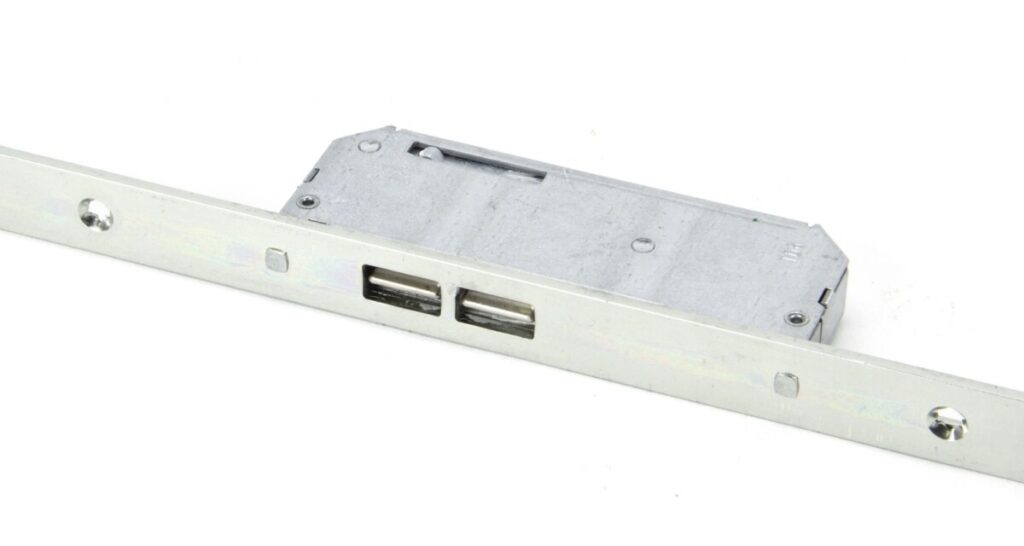

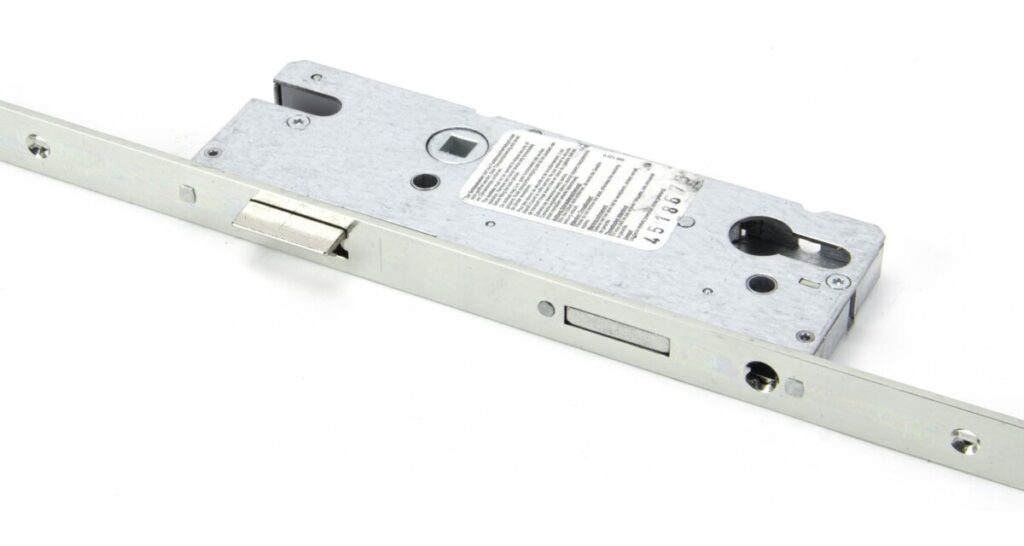

BZP Winkhaus 2.1m Thunderbolt Espag Lock 45mmBS

BZP Winkhaus 1.77m Heritage Thunderbolt Espag Lock 45mm BS
BZP Winkhaus Centre Latch Keep LH 44mm Door

£127.76

SKU: 92146 Categories: ,

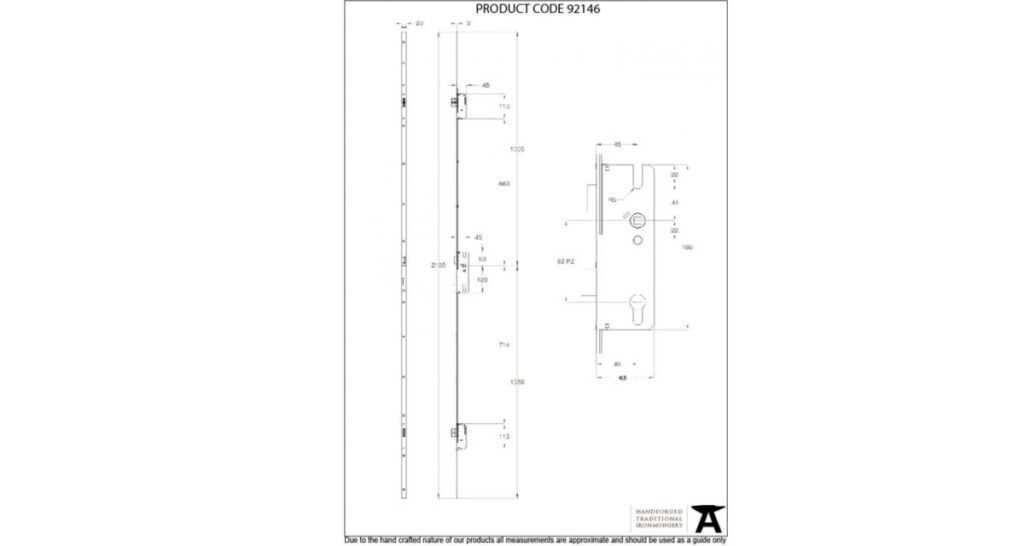

DIMENSIONS

Overall Height: 2105mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Deadbolt Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm
Min/Max Door Height: 1925mm - 2105mm

For use with our 92mm centre espagnolette locking handle sets.

  • Solid twin tapered deadbolts in the upper and lower positions.
  • 50% greater fitting tolerances compared to conventional hook locking systems.
  • Min/max door height: 1925mm/2105mm.
  • Please note 1 x euro cylinder needs to be purchased separately.
