Delivery in 2-3 weeks

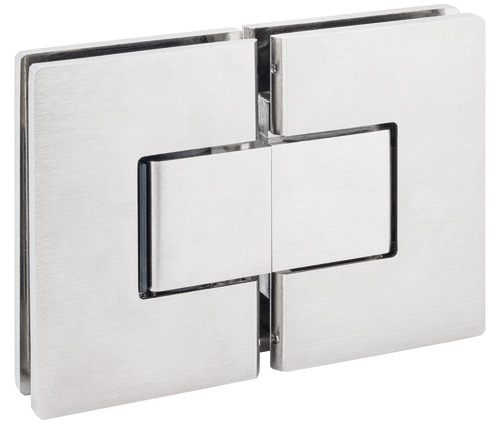

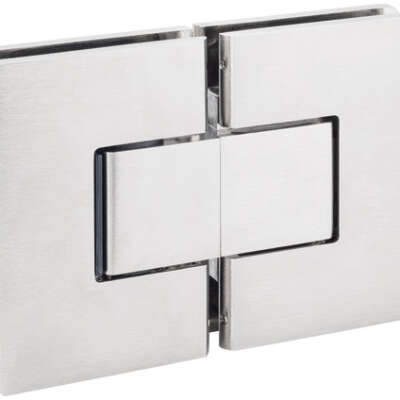

CO 8505 N Final latch
Price range: £104.10 through £140.44
with double-sided fixing bracket (glass-glass) for double-action shower glass doors
Product features
- adjustable clicking hinge
- for use with glass-glass combinations
- hold open function at + 90° and – 90°
- automatic closing from + 15° and – 15°
Downloads
- Description
- Additional information
- More Products
Description
Finishes
Technical details
Load capacity: 45,0 kg
Opening angle: +/- 90°
Hold open: + 90°, – 90°
Automatic closing: + 15°, – 15°
Glass thickness: 6 mm, 8 mm, 10 mm
Max. door width: 1000,0 mm
Type of door leaf
glass
Additional information
| Finish | Similar Satin Stainless Steel, Polished Chromed, Matt Gray, Similar Polished Gold, Similar Matt Gold, RAL 9005 Jet Black Matt |
|---|
-
