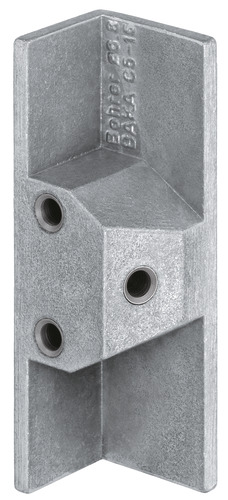

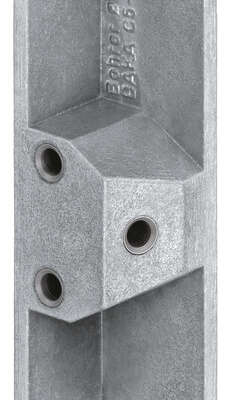

Drilling jig BAKA C 5-15

Description

Fitting instructions
1. Clamp sash on hinge side without any gap in the rebate onto the frame. The 3,0 mm clearance on the hinge side is considered in the drilling jig.
2. Mark hinge position.
3. Place drilling jig on frame and press firmly against overlap. Drill holes.
4. Remove sash again and screw in frame and sash part with the wind-in crank or with drilling machine.
5. Align hinge parts and hang door.

Scope of supply
1 x drilling jig
1 x drill bit Ø 6,8 mm
1 x set ring
1 x wind-in claw Ø 15,0 mm
1 x fitting instruction

Note
A special jig is required for hinge C 5-15/18,5.
