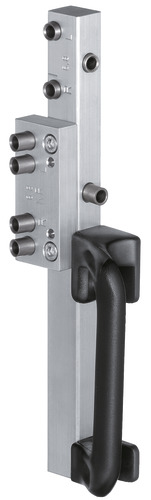

Drilling jig BAKA KR

Description

Fitting instructions
1. Clamp sash on hinge side without any gap in the rebate onto the frame . The 3,0 mm clearance on the hinge side is considered in the drilling jig.
2. Mark hinge position and drill holes.
3a. For windows with drainage rail: The frame pins need to be drilled diagonally by using the drilling bushes of the screwed-on drilling plate.
3b. For windows without drainage rail: The right hand drilling bushes apply to bottom-hung windows without drainage rails with vertically drilled frame pins.
4. Remove sash again and screw in frame and sash part with the wind-in crank or with drilling machine.
5. Align hinge parts and hang door.

Scope of supply
1 x drilling jig
1 x drill bit Ø 6,8 mm
1 x set ring
1 x wind-in claw Ø 13,0 mm
1 x wind-in claw Ø 15,0 mm
1 x fitting instruction

Note
See also jig connector
