Euro-Profile Cylinder Escape Sashlock – B0972-P

DIN standard euro profile cylinder escape sashlock for use on external wooden hinged doors providing a high level of security. Conforms to DDA requirements. Fire rated to BS EN 1634-1:2000. Deadbolt thrown or withdrawn by key from either side and withdrawn by lever handle from inside. Inside lever handle will withdraw both latchbolt and deadbolt to ensure quick escape. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.

Operation: Deadbolt thrown or withdrawn by key from either side and withdrawn by lever handle from inside. Inside lever handle will withdraw both latchbolt and deadbolt to ensure quick escape

Case: Steel, powder coated black, pierced to accept 38mm centre bolt through fixing furniture and 38mm centre bolt through fixing escutcheons

Forend: Stainless steel: Satin or Polished. Brass: Satin or Polished and BMA. Available square or radiused – please specify

Striker Plate: Finished to match forend

Latchbolt: Brass, reversible, zinc plated. Projection 11mm

Deadbolt: Brass, zinc plated. Throw 20mm

Follower: Brass, to suit 8mm square spindle Sprung to suit sprung lever handle furniture For unsprung lever handle furniture heavy duty springing should be specified

Cylinder: Not supplied. May be used with the following cylinders: a) Key outside b) Key either side

Rebate Units To Suit: B72/1501/S 13mm, B72/1502/S 19mm, B72/1503/S 25mm

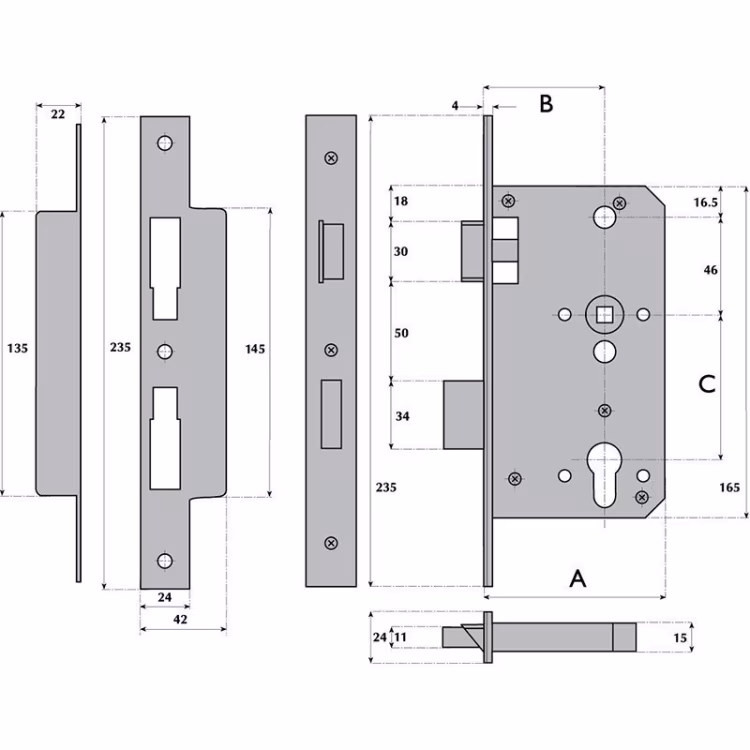

A Lock Case: 90mm, 110mm, 130mm

B Backset: 60mm, 80mm, 100mm

C Centres: 72mm
