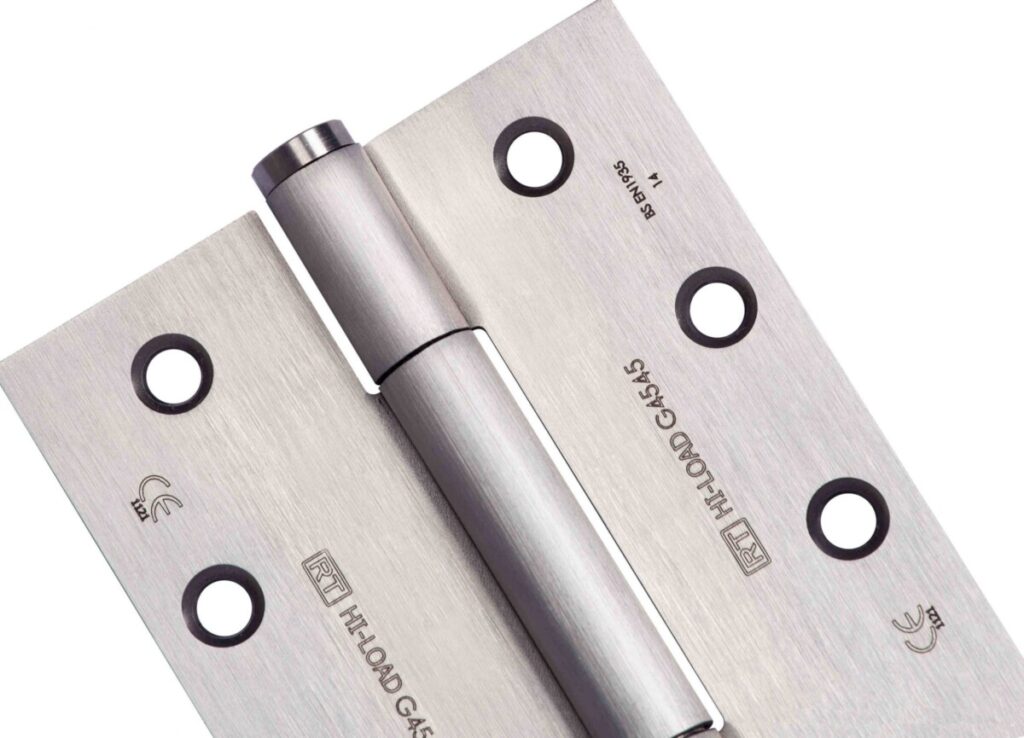

G4545-FS/FR Hi-Load Concealed Bearing Butt Hinge (Grade 14)
£27.58 – £40.61
SKU: G4545-FS/FR
Categories: Fixed Pin Hinges, Royde & Tucker Collection
SPECIFICATIONS
- 114.3×114.3×3.25mm Three knuckle butt hinge
- Dogbolt version (G4545-5)
- Radius corner version, R10mm
- Maximum adjusted door weight 160kg
- To BS EN 1935 Grade 14
- Minimum door thickness 54mm
- Maintenance free, guaranteed for 25 years
- CE Certificate No. 2812-CPR-AC5108
- CE Certificate No. 2812-CPR-AC5128 (Dog Bolt version)
- Suitable for use on fire doors: Certifire approved – CF215
- To be fitted with HP4545 intumescent hinge pads, if being installed on fire doors
- c/w metric 5 x 32mm wood screws
- Unless otherwise stated stainless steel substrate, Grade 316 stainless steel available
- Additional information
Additional information
Finish | Polyester Powder Coated, Brushed Stainless Steel, Satin Stainless Steel, Polished Stainless Steel, Simulated Brushed Brass, Simulated Polished Brass, Satin Nickel Plate, Satin Brass Lacquered, Polished Nickel Plate, Polished Brass Lacquer, Royde Bronze, BioCote Clear, Flatt Matt Black, Antique Brass, Old Bronze, Imitation Bronze Waxed, Dark Bronze |
---|---|
Option | Radiused, Square |
