Delivery in 1-3 weeks
H103-Partition
Placeholder H103-5-FR/FS Hi-Load Dog Bolt Hinge
H114-44-FR Hi-Load Cupboard Butt Hinge

H103-P Hi-Load Partition Butt Hinge

£12.96 – £18.30

SKU: H103-P Categories: , ,

SPECIFICATIONS

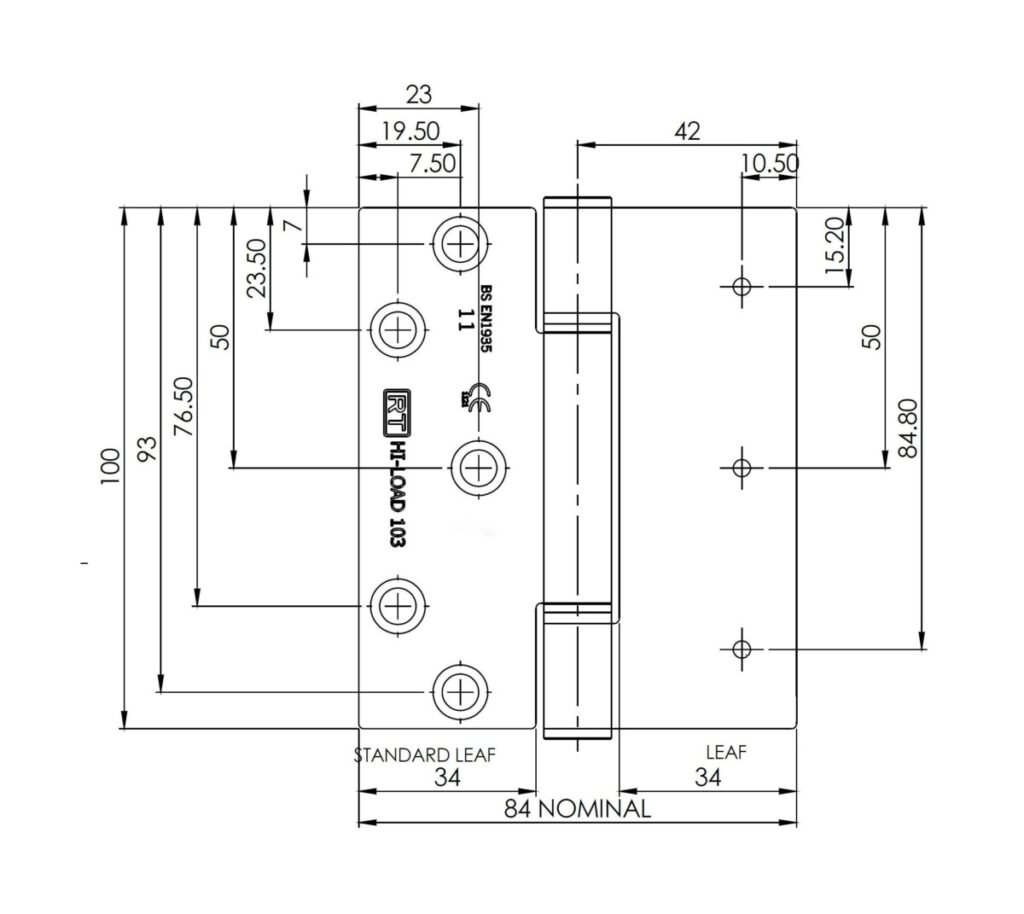

  • 100x84x2.64mm Three knuckle butt hinge
  • Maximum adjusted door weight 80kg
  • To BS EN 1935 Grade 11
  • Minimum door thickness 40mm
  • Maintenance free, guaranteed for 25 years
  • CE Certificate No. 2812-CPR-AC0045 (MS)
  • Suitability for use for use with fire doors to be confirmed by doorset provider
  • c/w metric 5 x 32mm wood screws (frame screws tbc by client)
  • Unless stated Mild steel substrate
Clear
Add product to your Wishlist

Additional information

Finish

Bright Zinc Plate, Emulated Brass Plate, Satin Zinc Plate, Polyester Powder Coated
