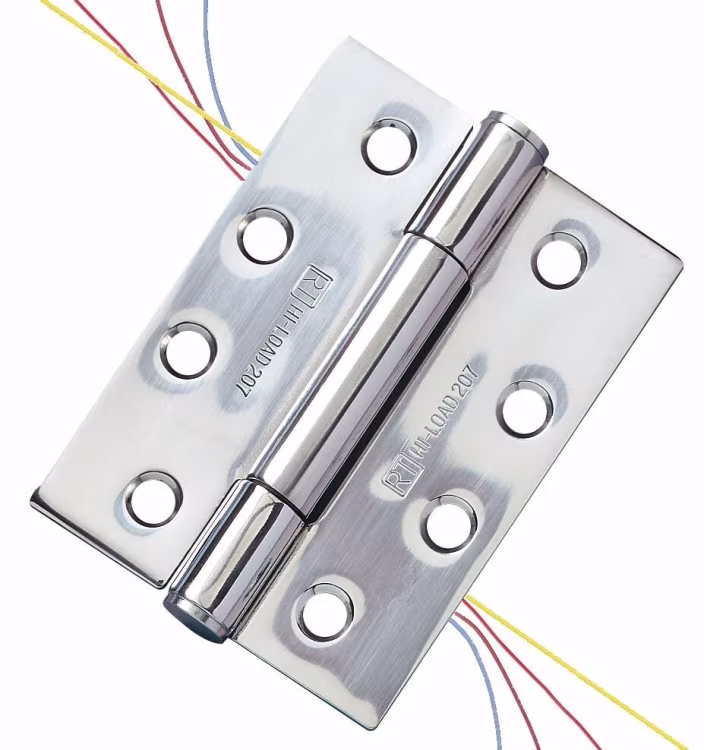

H207-1-FR/FS Hi-Load 4 Wire Conductor Hinge - Image 1

H207-1-FR/FS Hi-Load 4 Wire Conductor Hinge

H207-0-FR/FS Hi-Load 2 Wire Conductor Hinge
H207-5-FR/FS Hi-Load Security Dog Bolt Hinge

Price range: £164.57 through £216.39

SKU: H207-1-FR/FS Categories: ,

Concealed bearing conductor hinge. Allow the concealed transfer of power from the door frame into the door leaf.

  • 101.6×76.2x3mm Three knuckle butt hinge
  • Minimum door thickness 44mm
  • Maintenance free
  • Maximum voltage 24v. Maximum current: 2.0 amp per conductor
  • Number of conductor wires 4
  • High temperature, chemical and thermal stability wire: Silver plated copper with PTFE insulation to BS 2G 210
  • Wire length: 250mm frameleaf, 1000mm doorleaf
  • To be fitted with HP207 intumescent hinge pads, if being installed on fire doors
  • c/w metric 5 x 32mm wood screws
  • Unless stated stainless steel substrate, 316 stainless steel available
Add product to your Wishlist

Additional information

Finish

Brushed Stainless Steel, Satin Stainless Steel, Polished Stainless Steel, Simulated Brushed Brass, Simulated Polished Brass, Satin Nickel Plate, Satin Brass Lacquered, Polished Nickel Plate, Polished Brass Lacquer, Royde Bronze, Antique Brass, Old Bronze, Imitation Bronze Lacquered, Dark Bronze
Option

Radiused, Square
