K 6060 3D
£44.32
for PVCu entrance doors with robust angular fixing cams for extremely high pull-out strength
Product features
- for overlap thicknesses 16-20 mm
- 3-part hinge knuckle
- door part with angular fixing cams for extremely high pull-out strength
- 3D adjustment (side +/- 5,0 mm, height + 4,0/- 1,0 mm, compression +/- 2,0 mm)
- with integral security pin
- maintenance-free slide bearings
Downloads
- Description
- Additional information
Description

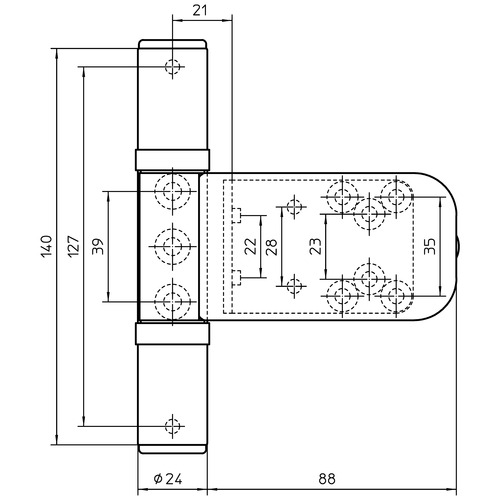

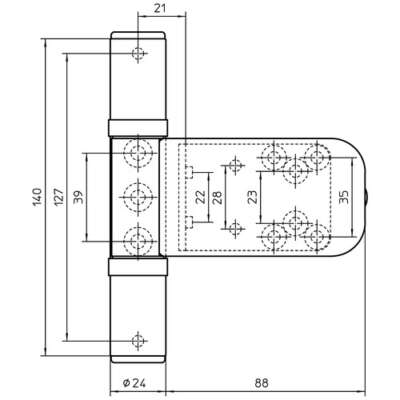

Technical details
Load capacity: 160.0 kg
Knuckle length: 140.0 mm
Knuckle diameter: 24.0 mm
Pin diameter: 10.0 mm

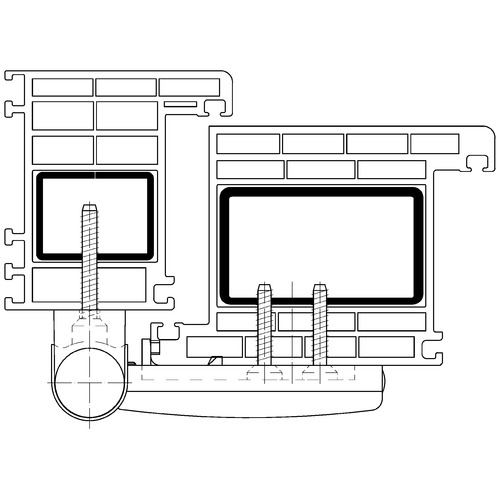

Suitable for
Type of door leaf: PVCu
Rebate: rebated
Finish
Additional information
| Finish | RAL 9016 Traffic White, H9 Brown |
|---|
