Delivery in 2-3 weeks

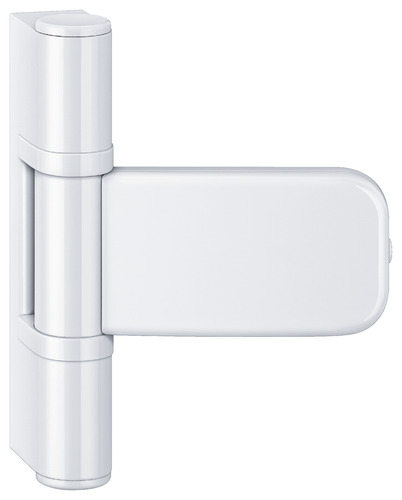

K 6165 3D – RAL 9016 Traffic White
£44.32
for PVCu entrance doors with robust barbs for fixing
Product features
- for overlap thicknesses 19-23 mm
- 3-part hinge knuckle
- door part with robust barbs for fixing
- 3D adjustment (side +/- 5.0 mm, height + 4.0/- 1.0 mm, compression +/- 2.0 mm)
- with integral security pin
- maintenance-free slide bearings
Downloads
- Description
Description

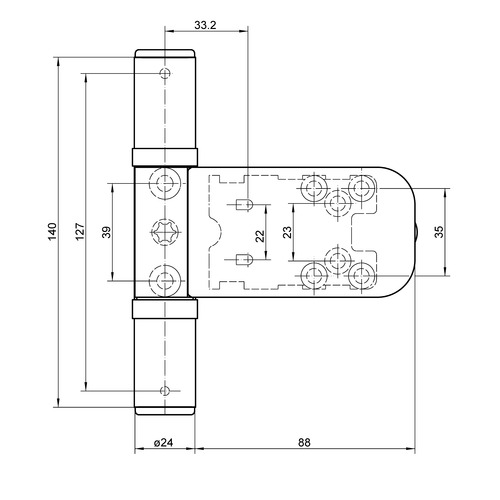

Technical details
Load capacity: 160.0 kg
Knuckle length: 140.0 mm
Knuckle diameter: 24.0 mm
Pin diameter: 10.0 mm
Suitable for
Type of door leaf: PVCu
Rebate: rebated
