Delivery in 2-3 weeks

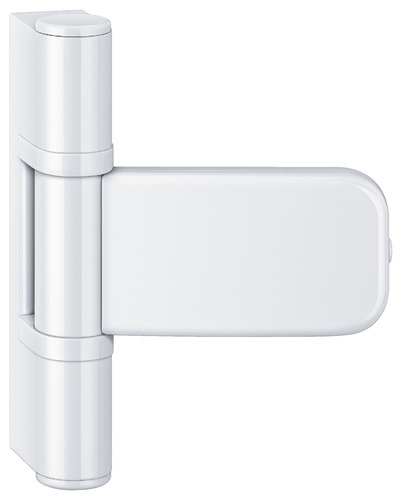

K 6260 3D – RAL 9016 Traffic White
£44.32
for PVCu entrance doors with robust angular fixing cams for extremely high pull-out strength
Product features

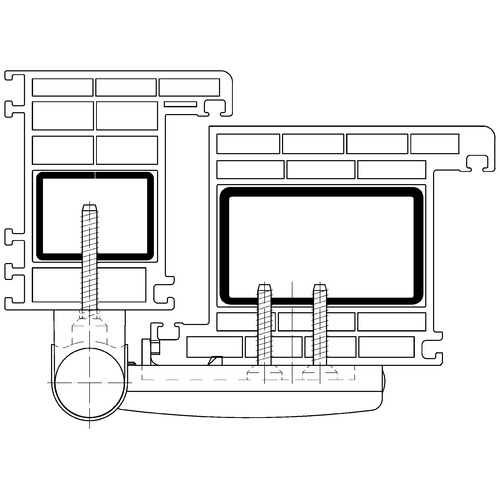

- for overlap thicknesses 22-26 mm
- 3-part hinge knuckle
- door part with angular fixing cams for extremely high pull-out strength
- 3D adjustment (side +/- 5.0 mm, height + 4.0/- 1.0 mm, compression +/- 2.0 mm)
- with integral security pin
- maintenance-free slide bearings
- Description
Description

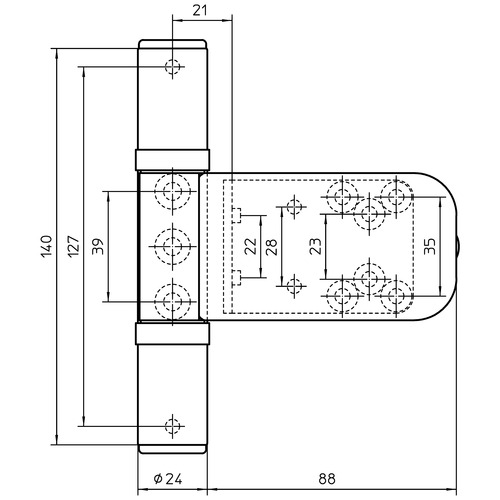

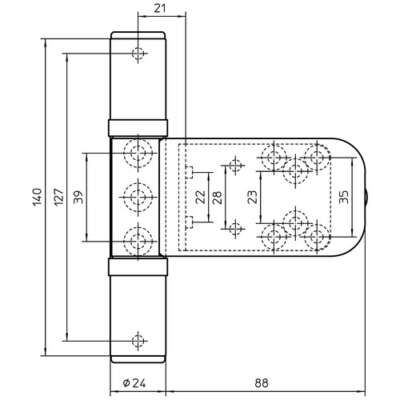

Technical details
Load capacity: 160.0 kg
Knuckle length: 140.0 mm
Knuckle diameter: 24.0 mm
Pin diameter: 10.0 mm
Suitable for
Type of door leaf: PVCu
Rebate: rebated
