Delivery in 2-3 weeks
KO 4 160x50x12x3 – Satin Stainless Steel
£42.13
weld-on hinge for steel windows and steel doors
- Description
Description

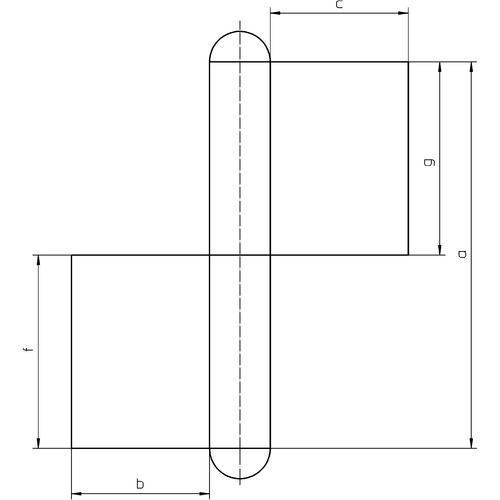

Technical details
Knuckle length: 160.0 mm
Knuckle diameter: 18.0 mm
Width (door part): 50.0 mm
Length (door part): 80.0 mm
Width (frame part): 50.0 mm
Length (frame part): 80.0 mm
Pin diameter: 12.0 mm
Material thickness: 3.0 mm
Suitable for
Type of door leaf: metal
Rebate: unrebated
Type of frame: steel frame
Note
Stainless steel version: With loose pin and grooved buttons to drive in for press fit.
Washers need to be ordered separately.
