Delivery in 2-3 weeks
KO 4 180x50x14x4 – Steel self colour
£11.91
weld-on hinge for steel windows and steel doors
- Description
Description

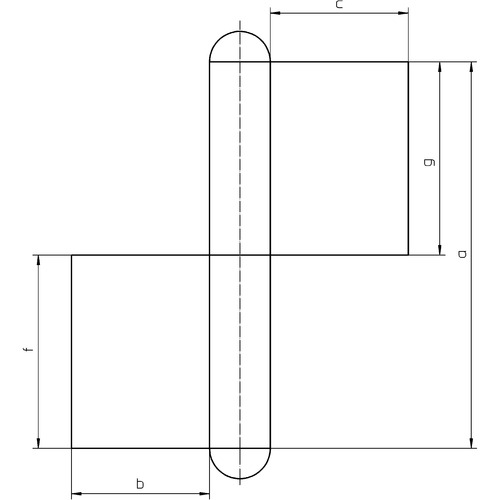

Technical details
Knuckle length: 180.0 mm
Knuckle diameter: 22.0 mm
Width (door part): 50.0 mm
Length (door part): 90.0 mm
Width (frame part): 50.0 mm
Length (frame part): 90.0 mm
Pin diameter: 14.0 mm
Material thickness: 4.0 mm
Suitable for
Type of door leaf: metal
Rebate: unrebated
Type of frame: steel frame
Note
Steel version: With loose, galvanised pin and grooved, galvanised buttons to drive in for press fit.
Washers need to be ordered separately.
