Delivery in 2-3 weeks
KO 4 80x30x9x3 – Steel self colour
£4.65
weld-on hinge for steel windows and steel doors
- Description
Description

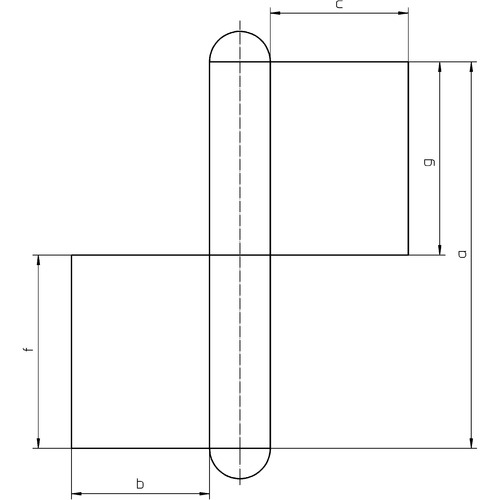

Technical details
Knuckle length: 80.0 mm
Knuckle diameter: 15.0 mm
Width (door part): 30.0 mm
Length (door part): 40.0 mm
Width (frame part): 30.0 mm
Length (frame part): 40.0 mm
Pin diameter: 9.0 mm
Material thickness: 3.0 mm
Suitable for
Type of door leaf: metal
Rebate: unrebated
Type of frame: steel frame
Note
Steel version: With loose, galvanised pin and grooved, galvanised buttons to drive in for press fit.
Washers need to be ordered separately.
