Delivery in 2-3 weeks
KO 8 240x16x5
Price range: £23.25 through £90.80
weld-on hinge for steel doors and heavy weight steel doors
- Description
- Additional information
Description

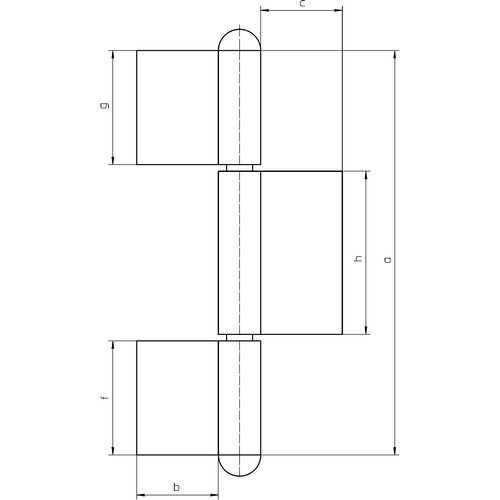

Technical details
Knuckle length: 240.0 mm
Knuckle diameter: 26.0 mm
Width (door part): 50.0 mm
Length (door part): 70.0 mm
Width (frame part): 50.0 mm
Length (frame part): 100.0 mm
Pin diameter: 16.0 mm
Material thickness: 5.0 mm
Suitable for
Type of door leaf: metal
Rebate: unrebated
Type of frame: steel frame
Note
Steel version: With loose, galvanised pin and grooved, galvanised buttons to drive in for press fit.
Stainless steel version: With loose pin and grooved buttons to drive in for press fit.
Washers need to be ordered separately.
Finish
Additional information
| Finish | Steel self colour, Blue galvanized, Satin Stainless Steel |
|---|
