Delivery in 2-3 weeks
KO 8 300x20x6 – Steel self colour
£47.22
weld-on hinge for steel doors and heavy weight steel doors
- Description
Description

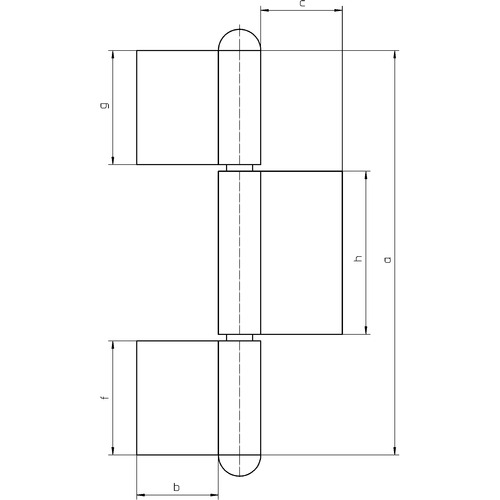

Technical details
Knuckle length: 300.0 mm
Knuckle diameter: 32.0 mm
Width (door part): 50.0 mm
Length (door part): 100.0 mm
Width (frame part): 50.0 mm
Length (frame part): 100.0 mm
Pin diameter: 20.0 mm
Material thickness: 6.0 mm
Suitable for
Type of door leaf: metal
Rebate: unrebated
Type of frame: steel frame
Note
Steel version: With loose, galvanised pin and grooved, galvanised buttons to drive in for press fit.
Washers need to be ordered separately.
