MULTI 3D VN 3130 – RAL 9016 Traffic White
£61.32
for rebated timber doors with steel and concrete frames
Product features
- for rebated timber doors
- for steel and concrete frames
- for overlap thicknesses 13-18 mm
- continuous 3D adjustment (side +/- 3.0 mm, height +/- 4.0 mm, compression +/- 3.0 mm)
- with angular bolting for high pull-out strength
- Description
Description

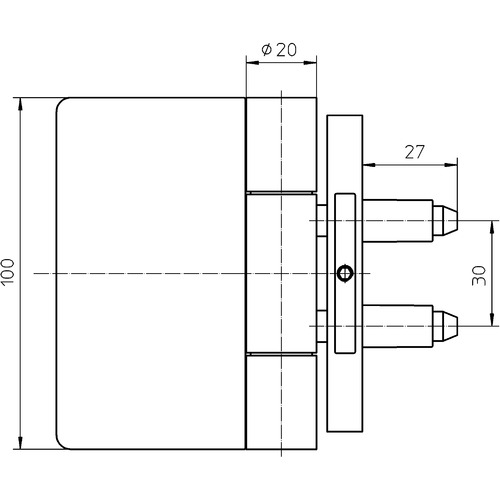

Technical details
Load capacity: 100.0 kg
Knuckle length: 100.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: steel frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Also available with security pin (MSTS).
