RB 5015 3D
Price range: £33.56 through £45.33

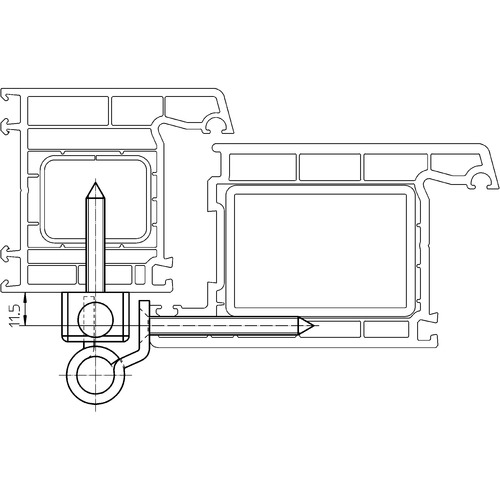

for PVCu entrance doors – door part drilling position 11.5 mm
Product features

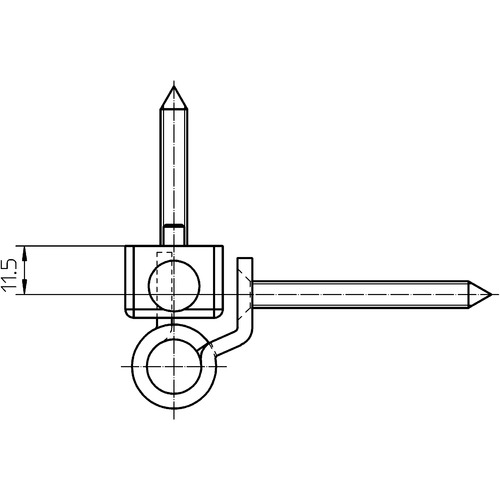

- door part drilling position 11,5 mm
- knuckle design hinge for continuous acoustic seal
- comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,5 mm)
- internal torsion-proof pin
- rational fitting thanks to positioning cams and screw-on technology
- maintenance-free slide bearings
Downloads
- Description
- Additional information
Description

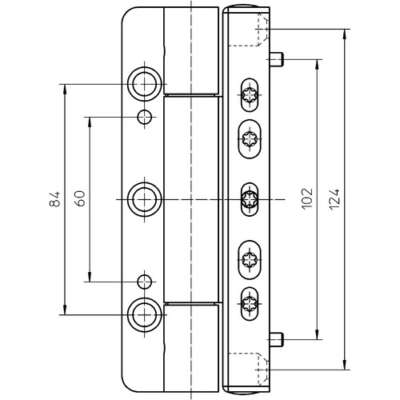

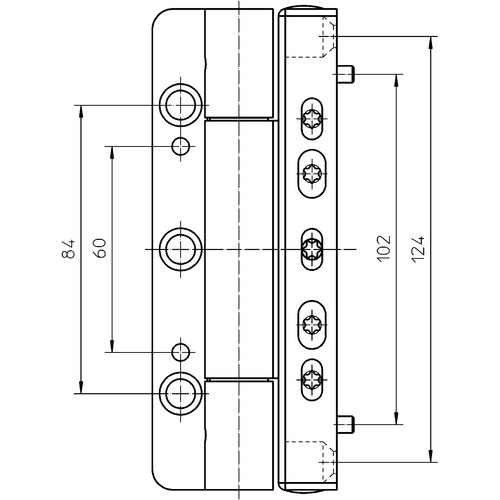

Technical details
Load capacity: 120.0 kg
Knuckle length: 140.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Material thickness: 3.5 mm
Suitable for
Type of door leaf: PVCu
Rebate: rebated
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Also available with security pin (MSTS).
Finish
Additional information
| Finish | Satin Stainless Steel, RAL 9016 Traffic White, H9 Brown |
|---|
