Rim Lock Davenport

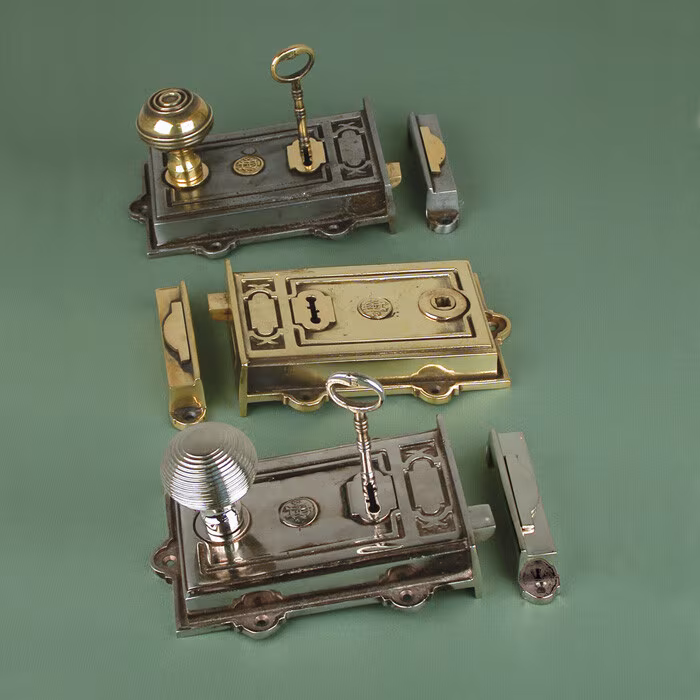

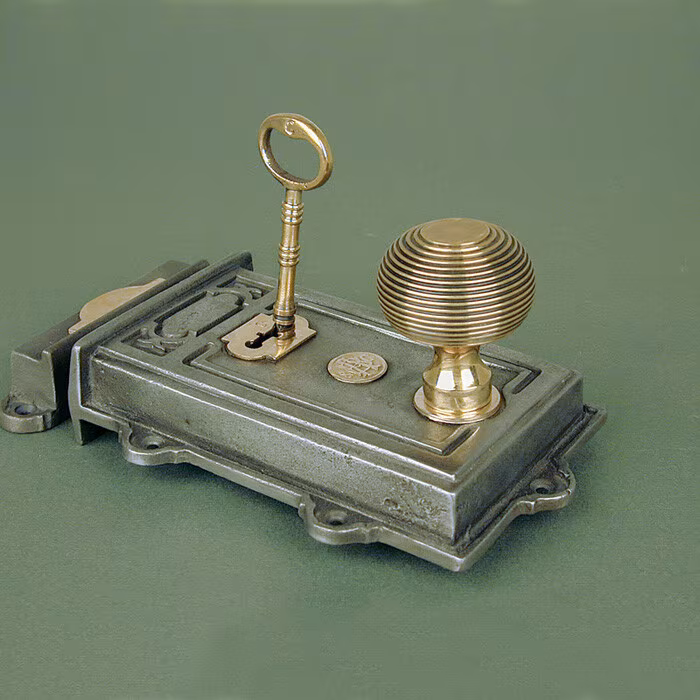

Our Davenport, single lever, dual handed rim lock is available in a choice of three ‘hand aged’ finishes – solid brass, cast iron with brass fittings, or nickel plated brass . Both the external design and internal locking mechanism are based on original period locks. Each lock is hand finished and is supplied with fixing screws and two solid brass keys. A simple variation on the key plate allows us to offer you up to six different keys.

Ideal for use with our Beehive or Bloxwich door knobs (supplied separately).

Product checklist:

• Product codes – Aged brass (RLb) Aged nickel (RLN) Iron (RLi)
• Lock Body – 122mm (W) x 168mm (L). Projection – 29mm
• Keep – 122mm (W) x 22mm (L). Projection – 29mm
• Backset (spindle centre to edge of door): 125mm
• Keyhole location (key centre to edge of door0 : 49mm
• Key – up to 6 different keys available
• All products un-lacquered
• Weight (boxed): 1530 (iron) - 1660g (brass /nickel)
