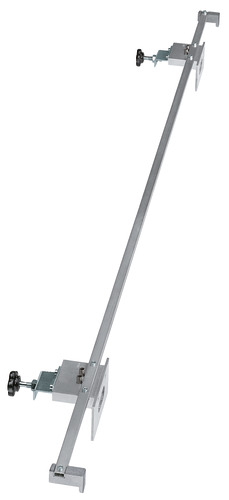

Serial jig VARIANT V 3604
£624.74
for drilling and routing of VARIANT V 3604
- Description
- More Products
Description
Fitting instructions
1. Clamp series jig to frame. The 3,5 mm clearance on the hinge side is considered in the drilling jig.
2. Drill holes for frame parts with Ø 7,2 mm drill bit.
3. Rout slots with Ø 12,0 mm cutter (Ø 30,0 mm collar ring).
4. Insert clamping blocks.
5. Insert frame parts and fasten with Allen screw.
Scope of supply
2 x drilling/routing jigs
1 x square connecting rod
2 x stops
1 x drill bit Ø 7,2 mm
1 x set ring
1 x fitting instruction
Note
Please indicate frame-line width when ordering drilling jig.
This series jig is pre-set to standard measurements according to German Standard 18101.
To mount VN 3938/160, VN 3948/160, VN 3938/160 FD, please request special jigs.
Also available as drilling/routing jig VARIANT V 3604.
-
