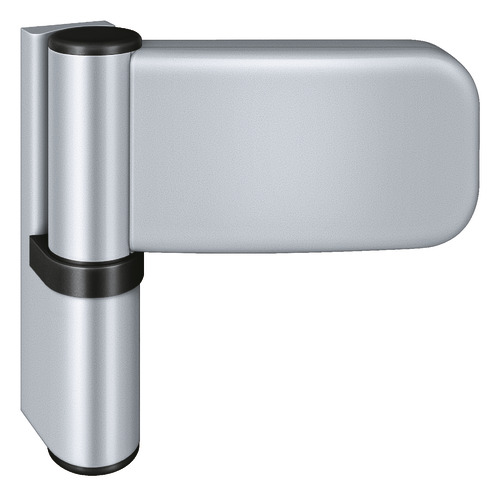

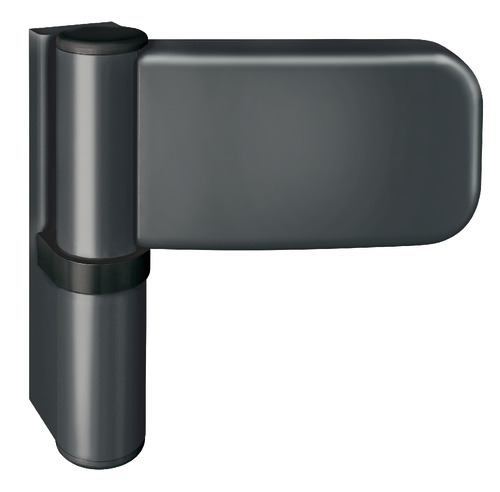

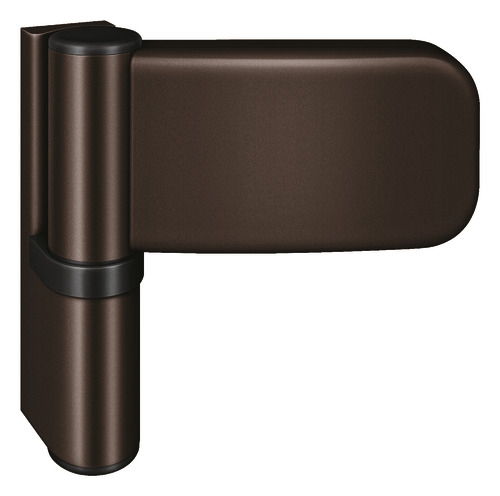

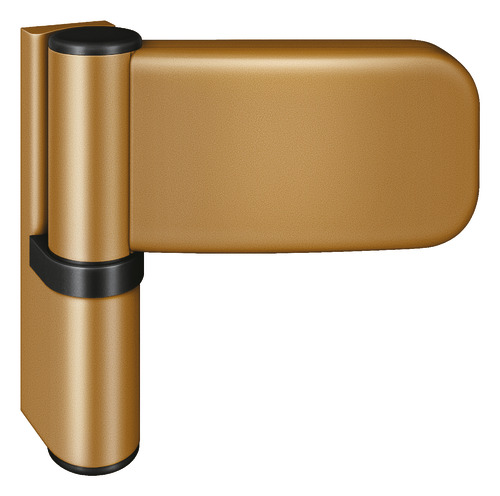

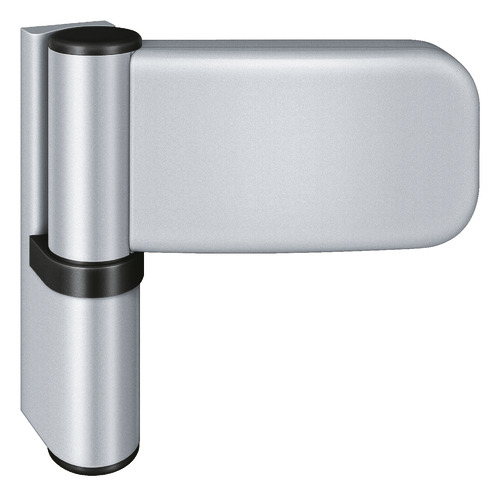

Simonswerk SIKU Hinge K 4045 3D - Image 1
Simonswerk SIKU Hinge K 4045 3D - Image 2

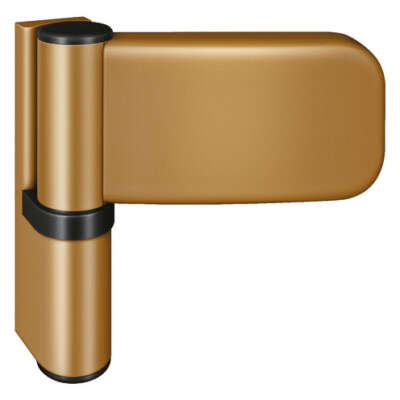

Simonswerk SIKU Hinge K 4045 3D - Image 3

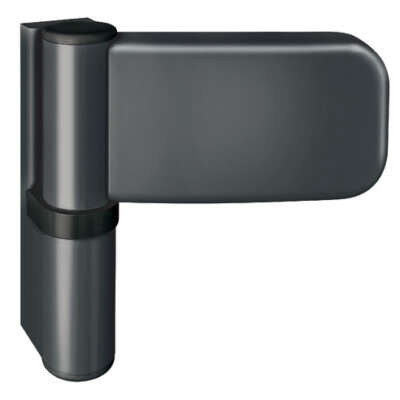

Simonswerk SIKU Hinge K 4045 3D - Image 4
Simonswerk SIKU Hinge K 4045 3D - Image 5

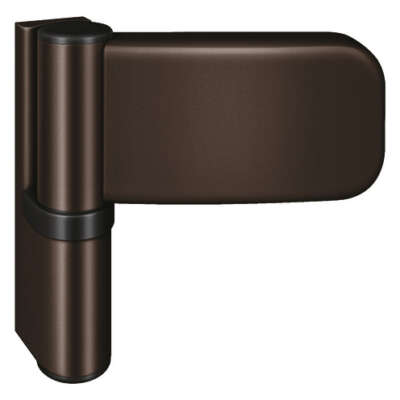

Simonswerk SIKU Hinge K 4045 3D - Image 6

Simonswerk SIKU Hinge K 4045 3D

Simonswerk SIKU Hinge K 4140 3D
Butt Hinge 1750 CE

Price range: £27.24 through £28.98

SKU: K 4045 3D Categories: ,

for light weight PVCu doors for flexible fixing

Product features

  • for overlap thicknesses 15-19 mm
  • door part for flexible fixing
  • 3D adjustment (side +/- 5,0 mm, height + 5,0/- 1,0 mm, compression +/- 2,0 mm)
  • with integral security pin
  • maintenance-free slide bearings

Technical details

Load capacity: 80,0 kg
Knuckle length: 100,0 mm
Knuckle diameter: 21,0 mm
Pin diameter: 8,0 mm

Suitable for

Type of door leaf: PVCu
Rebate: rebated

Note

**These products are made to order and generally take around 2 weeks - if you require urgently please contact the office.

Add product to your Wishlist

Description

Finishes:



Additional information

Finish

H9 Brown, Satin Chrome Look, RAL 7016 Anthracite Grey, RAL 1036 Pearl Gold, RAL 9016 Traffic White, RAL 8003 Clay Brown, RAL 9006 White Alu, Clear lc
