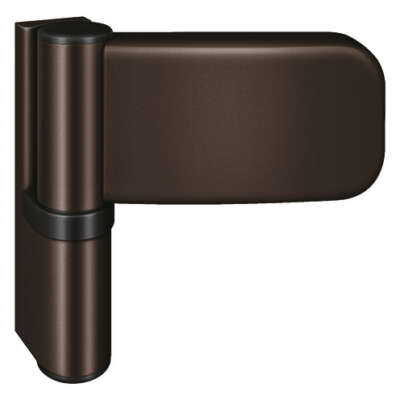

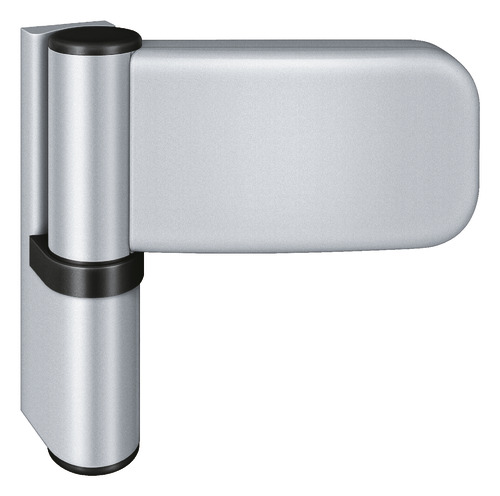

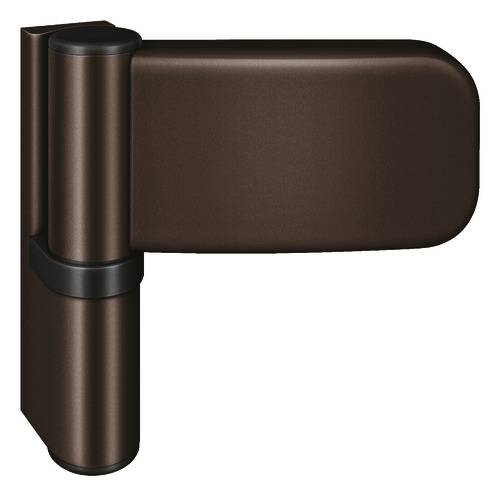

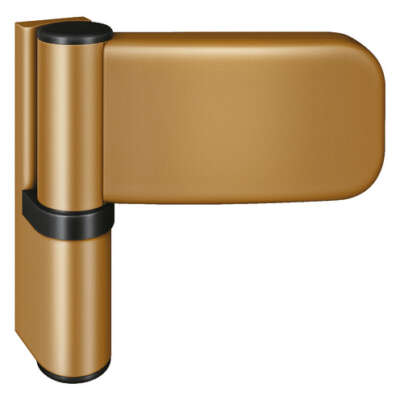

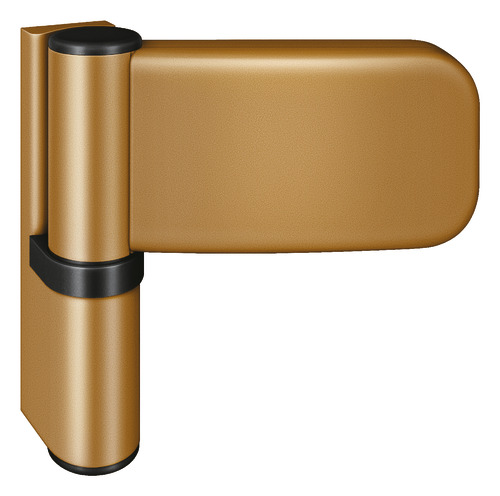

Simonswerk SIKU Hinge K 4145 3D

SKU: SIKU K 4145 3D Categories: SIKU, Simonswerk Collection

for light weight PVCu doors for flexible fixing

Product features

• for overlap thicknesses 18-22 mm
• door part for flexible fixing
• 3D adjustment (side +/- 5,0 mm, height + 5,0/- 1,0 mm, compression +/- 2,0 mm)
• with integral security pin
• maintenance-free slide bearings

Technical details

Load capacity: 80,0 kg
Knuckle length: 100,0 mm
Knuckle diameter: 21,0 mm
Pin diameter: 8,0 mm

Suitable for

Type of door leaf: PVCu
Rebate: rebated

Note

**These products are made to order and generally take around 2 weeks - if you require urgently please contact the office.
