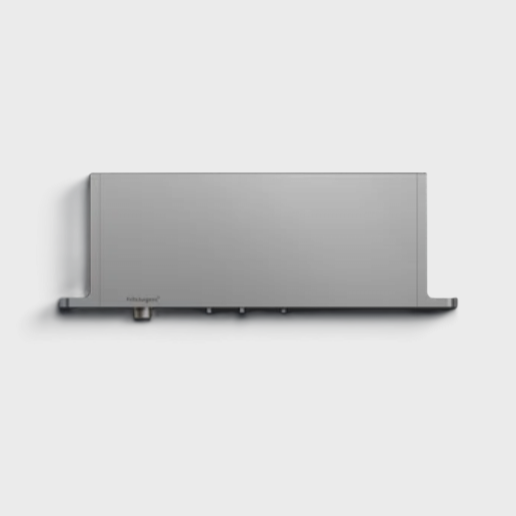

System M+ Class F-G

System M+ — Class F-G

System Specifications

Dimensions 308,2 x 42 x 112,7 mm
Weight 3,6 kg
Material Stainless Steel | Anodized aluminum
Corrosion resistance EN 1670 – class 5 (norm:0-5)

Door Specifications

Door acting Single & double-acting
Door weight Between 350 and 500 kg
Minimum door thickness 50 mm
Maximum door width 400 – 5000 mm
Hold positions 90º, -90º and 0º

Guarantee 2 years

Functionalities
Free Swing
Damper Control
30° Speed Control
Latch Control
