Delivery in 2-3 weeks
TE 626 3D A8 BW/1 – Satin Stainless Steel
£72.17

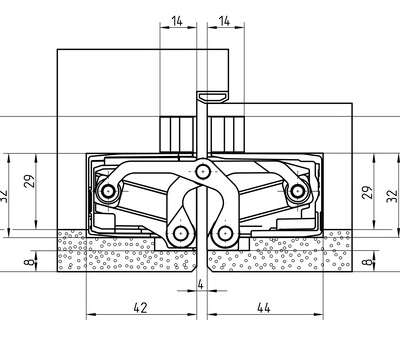

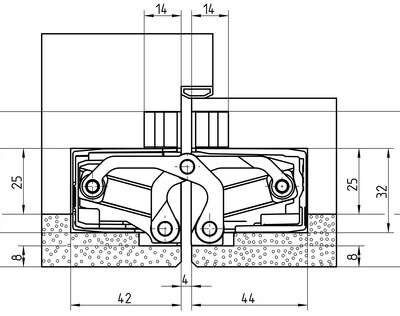

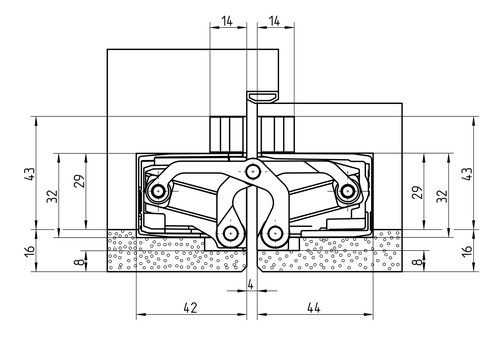

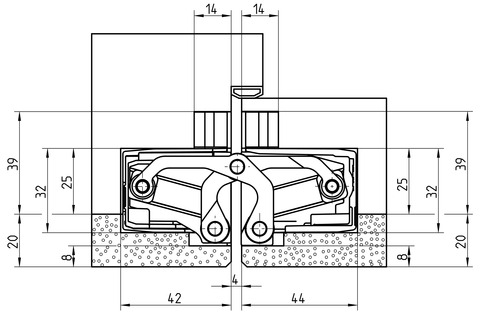

for unrebated heavy-duty doors with claddings up to 20 mm on both sides
Product features
- material stainless steel
- Description
Description
Technical details
Load capacity: 160.0 kg
Min. door thickness: 59.0 mm (incl. claddings)
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: block frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
The cladding material where the hinge will be installed, must be removed in order for the bracket to be installed.
For optimum opening, the lock side of the door leaf may need to be chamfered or beveled.
