Description
Product features
- solid brass high performance concealed bearing hinge
- weight carrying capacity to 120 kg
- suitable for heavy weight flush doors tested to BS EN 1935 Grade 13
- maintenance free, 25 year performance guarantee
- radius corner options available

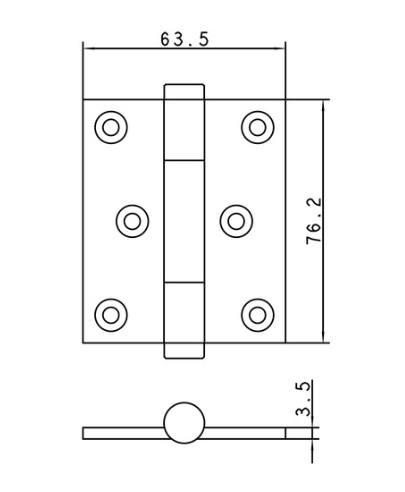

Technical details
Load capacity: 120.0 kg
Knuckle diameter: 13.0 mm
Overall length: 76.2 mm
Overall width: 63.5 mm
Material thickness: 3.5 mm
Screws: 9.5 x 32.0 mm
Screws (Gauge): 10.0 g
Screws (Quantity): 6
Note
Supplied complete with pozi/slotted head brass woodscrew if required.
Additional information
| Finish | Aged Brass, Antique Brass, Antique nickel, Copper Bronze, Copper, Honeycombe, Imitation Bronze, Midnight, Polished Chrome, Polished & Lacquered, Polished Nickel, Satin Brass & Lacquered, Satin Chrome, Satin nickel, Burnished Brass, Polished Imitation Bronze, Self Colour Brass |
|---|
