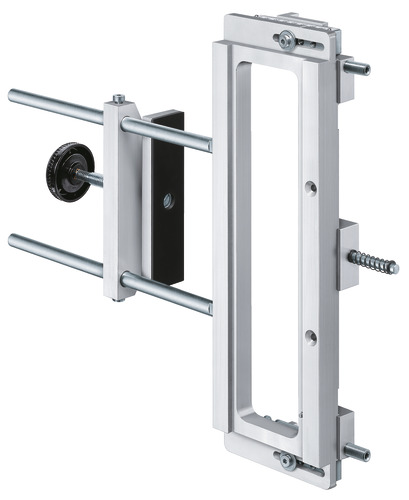

Universal milling frame long

Description

Fitting instructions
1. Secure the clamping device to the routing frame using the clamp rods.
2. Roughly adjust the clamping device according to rebate construction and fix in place with fastening screws.
3. Place the milling frame on the workpiece.
4. Insert routing template and roughly adjust using the standard values given for rail and angle.
5. Carry out fine adjustment using spindles.
6. Clamp routing frame to workpiece with clamping wheel.

Scope of supply
1 x universal frame long
1 x clamping device

Note
Routing templates need to be ordered separately.
