Description

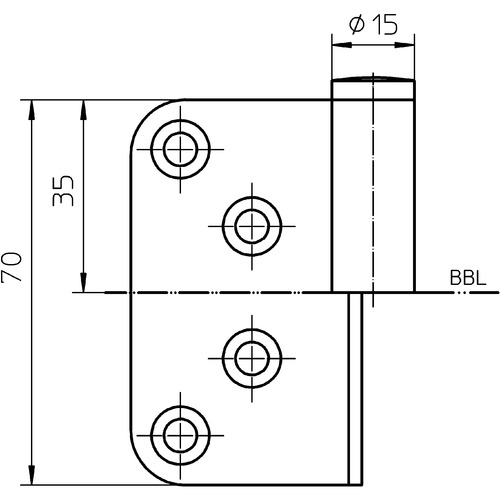

Technical details
Load capacity: 40.0 kg
Knuckle diameter: 15.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 20.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 2.5 mm
Screws: 4.5 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Load capacity applies only to the listed frame parts.
Please consider DIN reference.
Finish
Additional information
| Finish | Blue galvanized, Nickelled |
|---|
