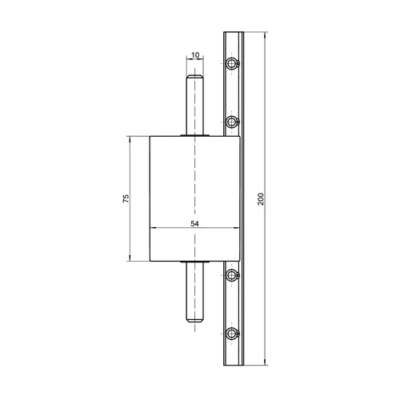

V 1999 Finger Protection Set 39-45 mm - Image 3
V 1999 Finger Protection Set 39-45 mm - Image 4

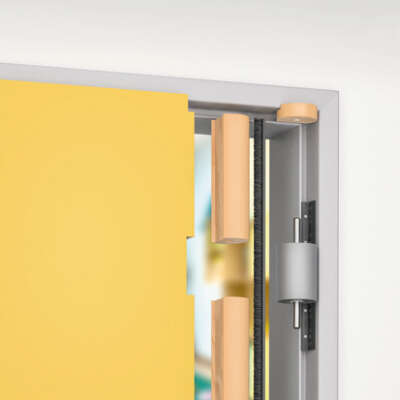

V 1999 Finger Protection Set 39-45 mm - Image 5

V 1999 Finger Protection Set 39-45 mm

V 7888-32 WF
V 7888 WF

£287.68

for doors with finger protection function on the hinge side for retrofitting on timber, steel and aluminium frames

Product features

  • for rebated and unrebated doors
  • for timber, steel or aluminium frames
  • easy and rational installation
  • door height up to 2110 mm
  • door thickness from 39-45 mm
  • maintenance-free slide bearings
  • opening angle max. 135° (rebated) / max. 90° (unrebated)

Downloads

MA_VARIANT_V_1999_Klemmschutz_dt_engl_2017

SKU: N/A Category:
Add product to your Wishlist

Description

Technical details

Load capacity: 60.0 kg
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm

Suitable for

Type of door leaf: timber
Rebate: rebated, unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame

Finish

Additional information

Finish

RAL 9010 Pure White, Beech Nature
