V 4437 WF ZK – gilded (SW 024)
£50.85

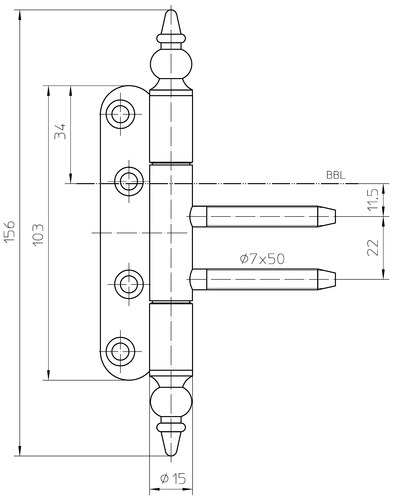

designer hinge for rebated doors with timber frames
- Description
Description
Technical details
Load capacity: 80.0 kg
Knuckle length: 96.0 mm
Knuckle diameter: 15.0 mm
Overall length: 156.0 mm
Pin diameter: 8.0 mm
Cutter diameter: 20.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 2.5 mm
Screws: 4.5 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame, casing frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Also available with security pin (MSTS).
