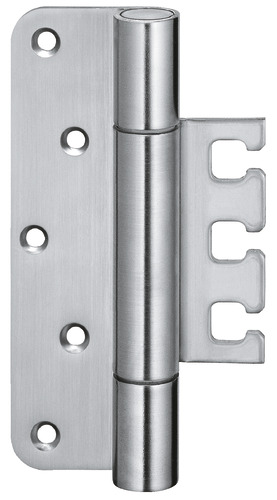

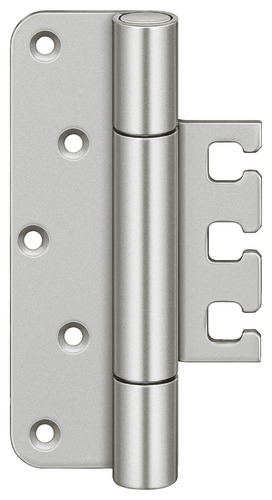

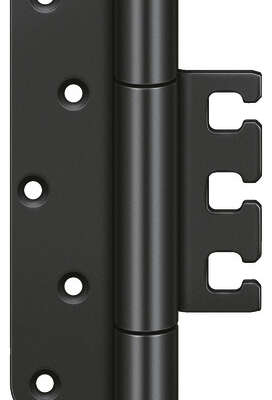

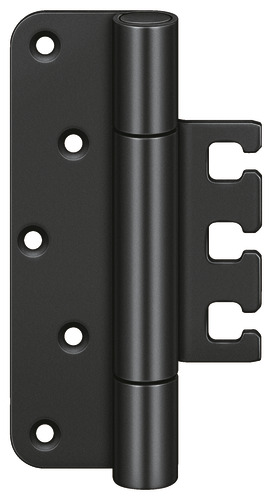

Simonswerk Variant VX 7728 / 160

SKU: VX 7728/160 Categories: Simonswerk Collection, Simonswerk Hinges

for rebated flush heavy-duty doors

Product features

• for rebated flush heavy-duty doors
• for timber, steel or aluminium frames
• for 3D adjustable VARIANT VX receivers
• internal torsion-proof pin
• concealed, maintenance-free axial-radial slide bearings

Technical details

Load capacity: 120,0 kg
Knuckle length: 160,0 mm
Knuckle diameter: 22,5 mm
Pin diameter: 10,0 mm
Cutter diameter: 24,0 mm
Collar ring diameter: 30,0 mm
Material thickness: 3,5 mm
Screws: 5,0 x 50,0 mm

Suitable for

Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame

Note

**These products are made to order and generally take around 2 weeks - if you require urgently please contact the office.
