VG 3990 – Satin Stainless Steel
£66.83
for glass doors with rebated casing and block frames
Product features
- for rebated casing and block frames
- for VARIANT V receivers
- intended for glass doors with vertical standard hole pattern
- for glass thicknesses of 8 and 10 mm
- torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- Description
Description

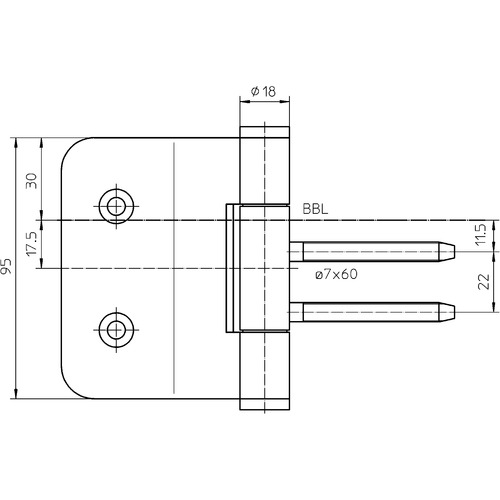

Technical details
Load capacity: 60.0 kg
Knuckle length: 95.0 mm
Knuckle diameter: 18.0 mm
Pin diameter: 9.0 mm
Material thickness: 3.5 mm
Suitable for
Type of door leaf: glass
Rebate: rebated
Type of frame: block frame, casing frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
The additional use of reinforcing plate V 3610 or even 3690 is recommended with casing frames.
