VN 2929/160 Planum
Price range: £48.52 through £57.25
with reduced, elegant knuckle for unrebated heavy-duty doors with block frames and blind frames
Product features
- with reduced, elegant knuckle
- integral security pin
- for unrebated heavy-duty doors
- for block and blind frames
- concealed, maintenance-free axial-radial slide bearings
- Description
- Additional information
Description

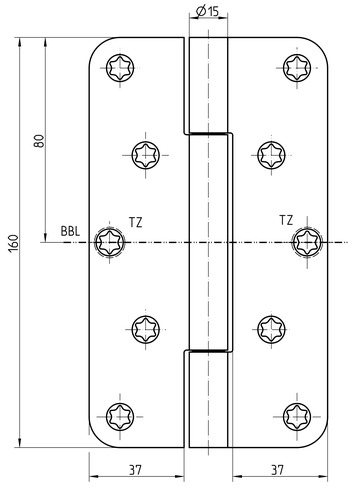

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 15.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.0 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: blind frame, block frame
Finish
Additional information
| Finish | Satin chromed F1, Satin Stainless Steel, RAL 9005 Matte Black |
|---|
