Delivery in 2-3 weeks
VN 4739/100
£56.22
for rebated heavy-duty doors with casing and steel frames
Product features
- for rebated heavy-duty doors
- for casing and steel frames
- for VARIANT V receiver and blind rivet nut M10
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- Description
- Additional information
Description

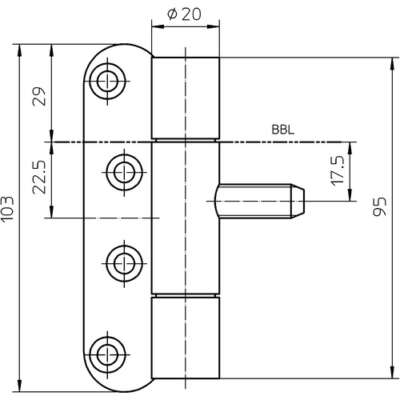

Technical details
Load capacity: 100.0 kg
Knuckle length: 95.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: casing frame, steel frame
Finish
Additional information
| Finish | Satin Stainless Steel |
|---|
