VN 8939/100 FD M
Price range: £51.29 through £52.74
for rebated heavy-duty doors with steel frames
Product features
- for rebated heavy-duty doors
- for steel frames
- for VARIANT V receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description
Finish

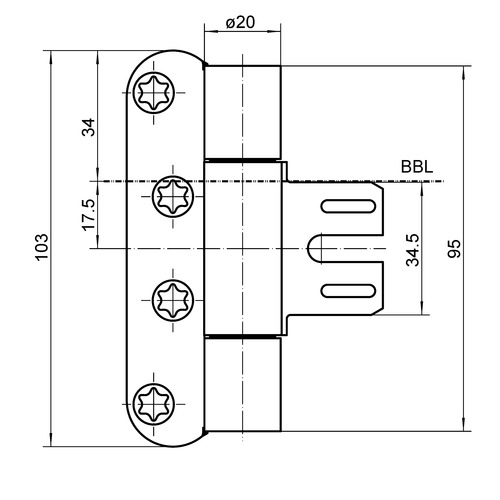

Technical details
Load capacity: 100.0 kg
Knuckle length: 95.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf
timber
Rebate
rebated
Type of frame
steel frame
Additional information
| Finish | Satin Nickelled F2, Satin Stainless Steel |
|---|
