Delivery in 2-3 weeks

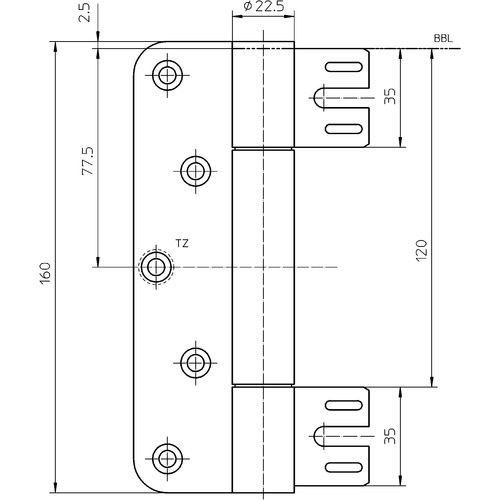

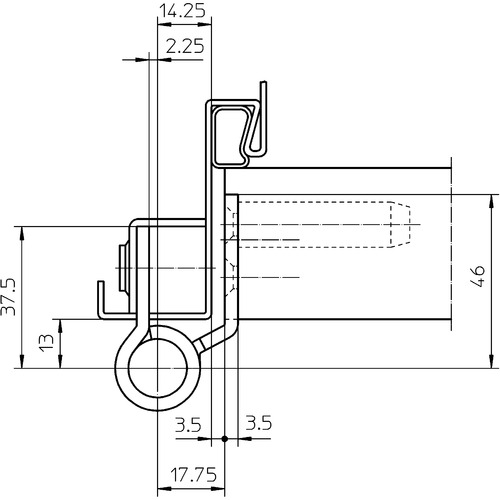

VN 8948/160 – Satin Stainless Steel
£62.76
for unrebated heavy-duty doors with steel frames
Product features
- for unrebated heavy-duty doors
- for steel frames
- for VARIANT V receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
Description
Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: steel frame
