VX 7749/160-4 50+65 Care – Satin Stainless Steel
£102.42
for unrebated heavy-duty doors in health care facilities
Product features
- for unrebated heavy-duty doors in health care facilities
- free accessibility thanks to full frame opening
- for timber, steel or aluminium frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- Description
Description

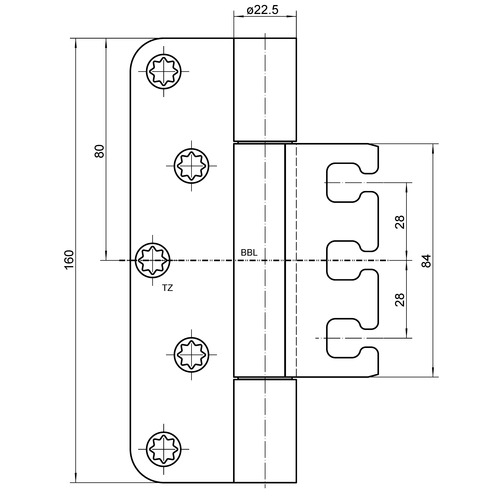

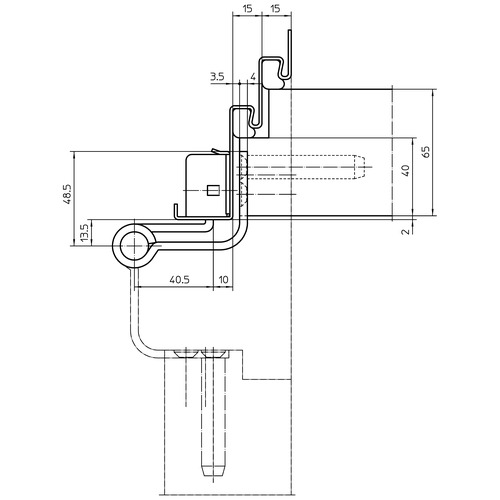

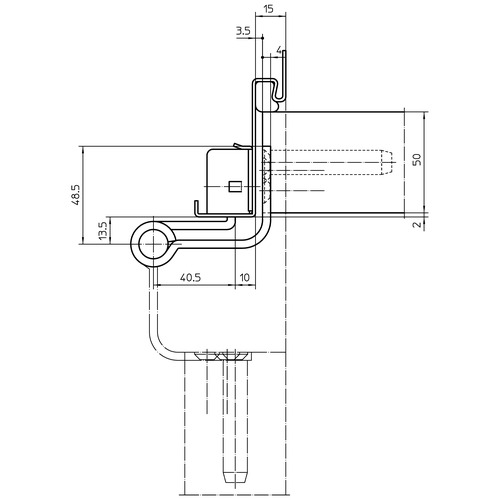

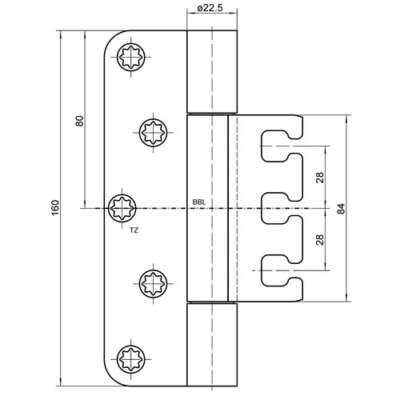

Technical details
Load capacity: 100.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Opening angle: 180°
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
