VX 7859/160-4 FD
Price range: £107.51 through £114.77
for rebated flush soundproof doors with acoustic seal
Product features
- for rebated flush soundproof doors
- with groove for continuous acoustic seal
- for timber, steel or aluminium frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description
Finish

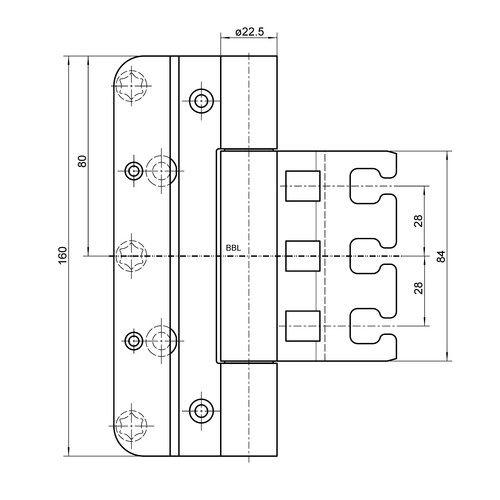

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Screws for cover plate: 3.0 x 25.0 mm
Screws for overlap: 4.5 x 30.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated flush
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
Additional information
| Finish | Satin Stainless Steel, RAL 9005 Matte Black |
|---|
