Delivery in 2-3 weeks
VX 7859/160-4
Price range: £94.58 through £96.02
for rebated flush heavy-duty doors
Product features
- for rebated flush heavy-duty doors
- for timber, steel or aluminium frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description
Finish

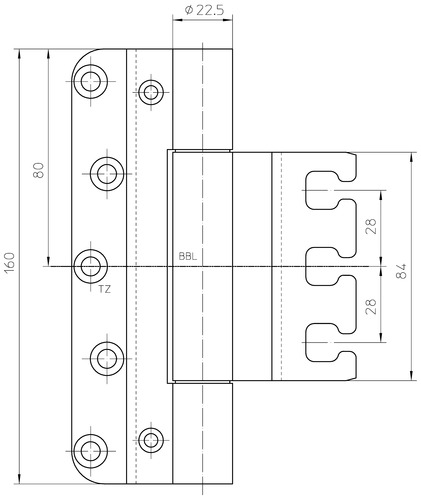

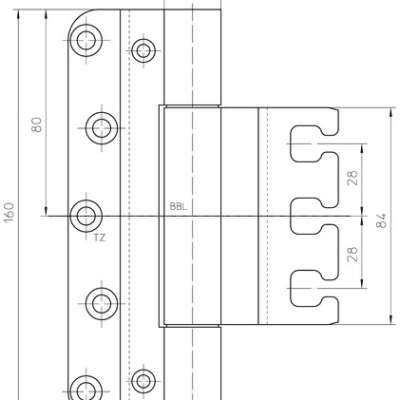

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Screws for overlap: 4.5 x 30.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated flush
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
Additional information
| Finish | Satin Nickelled F2, Satin Stainless Steel |
|---|
