Delivery in 2-3 weeks
VX 7939/160-4 FD 18/5 – Satin Stainless Steel
£102.29

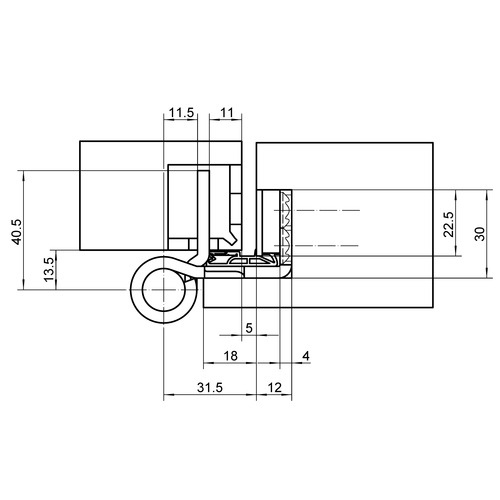

for rebated timber entrance doors with overlap seals and 5 mm clearance
Product features
- for 18 mm overlap and 5 mm clearance
- for rebated timber entrance doors
- with groove for continuous acoustic seal
- hinge pocket for timber frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
Description

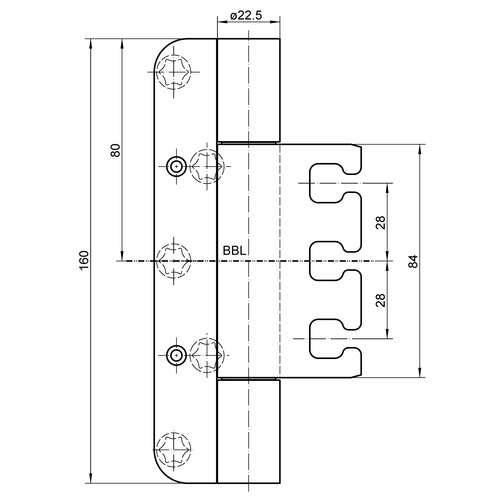

Technical details
Load capacity: 300.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Screws for cover plate: 3.0 x 25.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame, casing frame
