Delivery in 2-3 weeks
BAKA Protect 2010 2D FD
Price range: £21.21 through £47.07
with 2D adjustment for rebated timber doors
Product features
- for rebated timber entrance doors
- concealed receiver in the door leaf
- for doors with overlap seals
- 2D adjustment (side +/- 3,0 mm, compression +/- 3,0 mm)
- minimized routing work
- maintenance-free slide bearings
Downloads
- Description
- Additional information
Description
Technical details

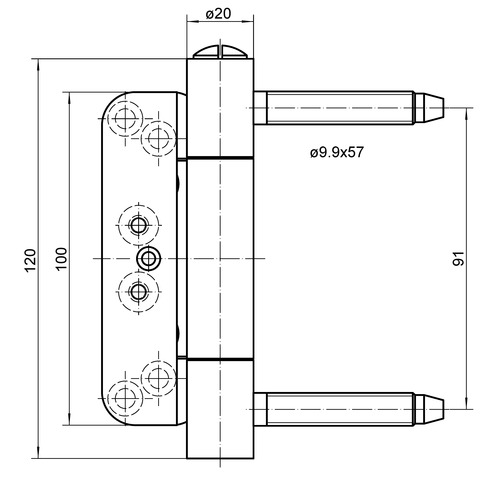

Load capacity: 120.0 kg
Knuckle length: 120.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 20.0 mm
Collar ring diameter: 30.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame
Finish
Additional information
| Finish | Satin Stainless Steel, RAL 9016 Traffic White, Topzinc |
|---|
