Delivery in 2-3 weeks
BAKA Protect 2040 2D FD - Image 1
BAKA Protect 2040 2D FD - Image 2

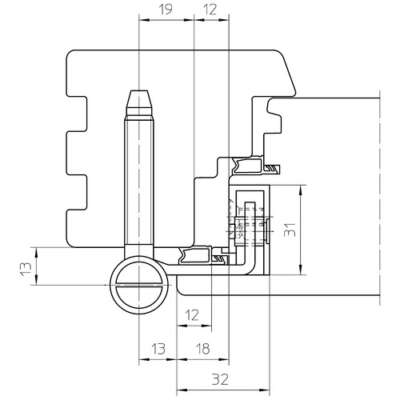

BAKA Protect 2040 2D FD - Image 3
BAKA Protect 2040 2D FD - Image 4

BAKA Protect 2040 2D FD

C 1-20 WF
BAKA Protect 2010 2D FD

Price range: £21.21 through £47.07

with 2D adjustment for rebated timber windows and doors

Product features

  • for rebated timber windows and doors
  • concealed receiver in the door leaf
  • for doors with overlap seals
  • 2D adjustment (side +/- 3,0 mm, compression +/- 3,0 mm)
  • minimized routing work
  • maintenance-free slide bearings

Downloads

MA_BAKA_Protect_2000_Serie_de-en-fr-es

SKU: BAKA Protect 2040 2D FD Category:
Add product to your Wishlist

Description

Technical details

Load capacity: 120.0 kg
Knuckle length: 120.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 20.0 mm
Collar ring diameter: 30.0 mm

Suitable for

Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame

Finish

Additional information

Finish

Satin Stainless Steel, RAL 9016 Traffic White, RAL 9005 Matte Black, Topzinc
