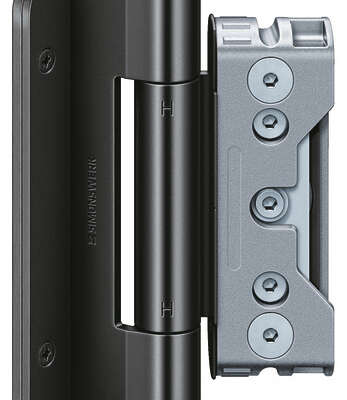

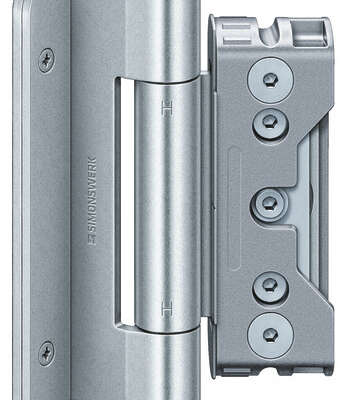

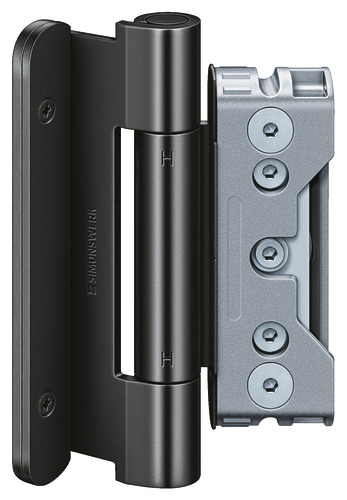

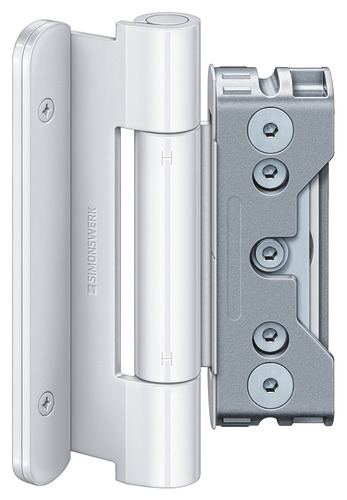

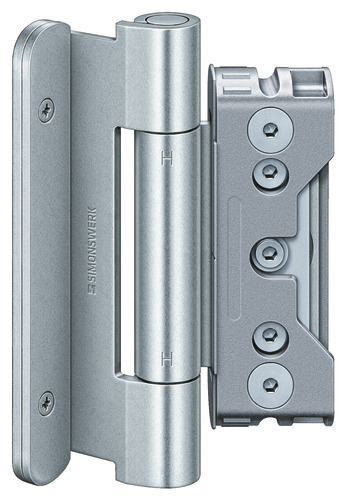

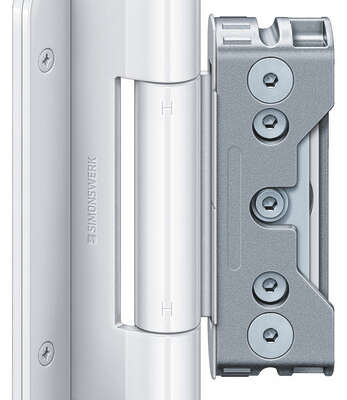

Simonswerk Simonswerk BAKA Protect Hinge 4010 3D

SKU: BAKA Protect 4010 3D Categories: BAKA, Simonswerk Collection

with 3D comfortable eccentric adjustment

Product features

• for rebated timber entrance doors
• concealed receiver in the door leaf and frame
• with comfortable eccentric adjustment
• 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 3,0 mm)
• internal pin
• usable for system testing in accordance with DIN EN 1627 ff.
• maintenance-free slide bearings

Technical details

Load capacity: 160,0 kg
Knuckle length: 140,0 mm
Knuckle diameter: 20,0 mm
Pin diameter: 10,0 mm
Cutter diameter: 20,0 mm
Collar ring diameter: 30,0 mm

Suitable for

Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame

Note

**These products are made to order and generally take around 2 weeks - if you require urgently please contact the office.
