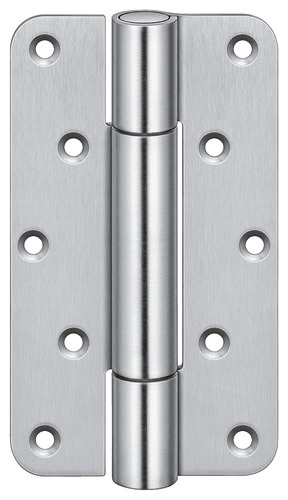

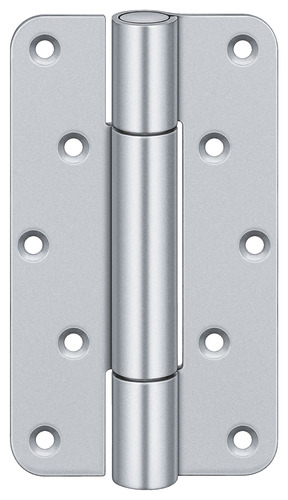

Simonswerk Variant Compact VN 2927/160 Compact Planum

SKU: VN 2927/160 Compact Planum Categories: Simonswerk Collection, Simonswerk Hinges, VARIANT, Variant Compact

with reduced, elegant knuckle for unrebated heavy-duty doors with thin block frames and blind frames

Product features

• with reduced, elegant knuckle
• integral security pin
• for unrebated heavy-duty doors
• for block and blind frames
• with receiver in the door leaf
• with comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
• concealed, maintenance-free axial-radial slide bearings

Technical details

Load capacity: 160,0 kg
Knuckle length: 160,0 mm
Knuckle diameter: 15,0 mm
Cutter diameter: 24,0 mm
Collar ring diameter: 30,0 mm
Material thickness: 3,0 mm
Screws: 5,0 x 50,0 mm

Suitable for

Type of door leaf: timber
Rebate: unrebated
Type of frame: blind frame, block frame

Note

**These products are made to order and generally take around 2 weeks - if you require urgently please contact the office.
