Delivery in 2-3 weeks

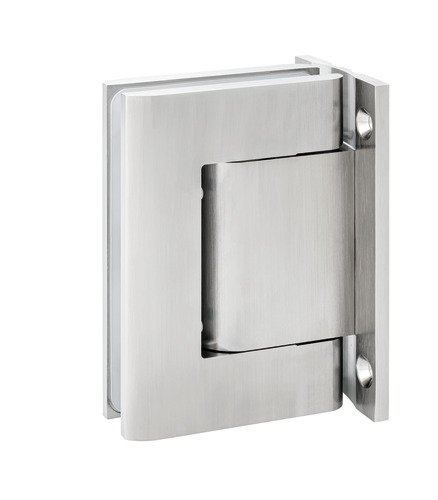

BL 8010
Price range: £200.35 through £240.61
with double-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with closing speed adjustment
- hold open function at + 90° and – 90°
- automatic closing from + 80° and – 80°
- can also be used for single-action doors
Downloads
- Description
- Additional information
- More Products
Description
Finishes

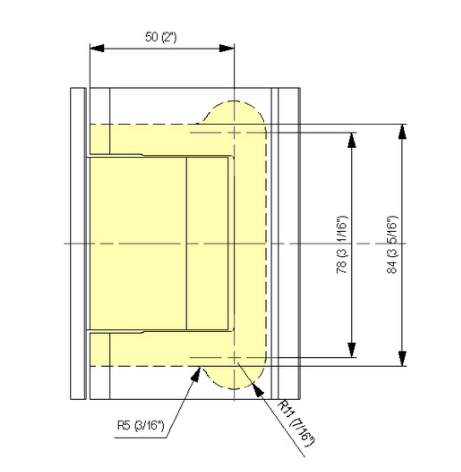

Technical details
Load capacity: 100,0 kg
Overall length: 108,0 mm
Overall width: 79,5 mm
Overall depth: 29,0 mm
Opening angle: +/- 90°
Hold open: + 90°, – 90°
Automatic closing: + 80°, – 80°
Glass thickness: 8 – 13,52 mm
Temperature range: – 15,0°C to + 40,0°C
Max. door width: 1000,0 mm
Suitable for
Type of door leaf: glass
Additional information
| Finish | Ev1 Satin Silver Natural, Satin Black, Similar Satin Stainless Steel, Polished Chromed, Matt Gray, Similar Polished Gold, Similar Matt Gold, Ral 9005 Jet Black Matt, Ral 9010 Pure White Matt, Ral 9016 Traffic White Matt |
|---|
-
