Delivery in 2-3 weeks
BL 8910
Price range: £225.88 through £268.11
with double-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors
Product features
- hydraulic hinge
- for use with wall-glass combinations

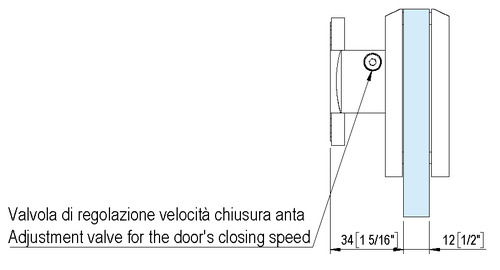

- with closing speed adjustment
- with zero point adjustment
- hold open function at + 90° and – 90°
- automatic closing from + 80° and – 80°
- can also be used for single-action doors
Downloads
- Description
- Additional information
Description
Finishes
Technical details
Load capacity: 100,0 kg
Opening angle: +/- 90°
Hold open: + 90°, – 90°
Automatic closing: + 80°, – 80°
Glass thickness: 8 – 13,52 mm
Temperature range: – 15,0°C to + 40,0°C
Max. door width: 1000,0 mm
Suitable for
Type of door leaf: glass
Additional information
| Finish | EV1 satin silver natural, satin black, anodized, similar satin stainless steel, Ral 9005 Jet Black Matt, Ral 9010 Pure White Matt, Ral 9016 Traffic White Matt |
|---|
