Delivery in 2-3 weeks
K 3330 3D - Image 1
K 3330 3D - Image 2

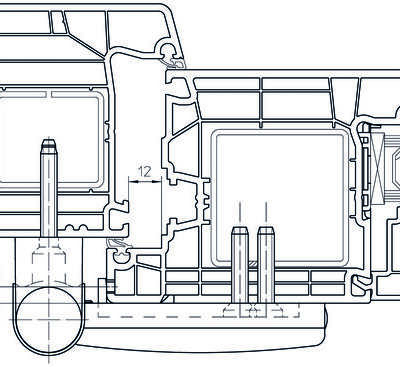

K 3330 3D - Image 3

K 3330 3D

K 3235 3D
K 3230 3D

Price range: £32.62 through £34.07

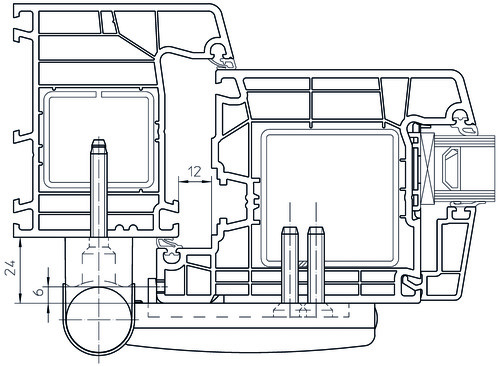

for PVCu entrance doors with angular fixing cams

Product features

  • for overlap thicknesses 24-28 mm
  • door part with angular fixing cams for extremly high pull-out strength
  • 3D adjustment (side +/- 5.0 mm, height + 5.0/- 1.0 mm, compression +/- 2.0 mm)
  • with integral security pin
  • maintenance-free slide bearings

Downloads

MA_SIKU_3D_K3_Serie_de-en-fr-es

SKU: K 3330 3D Category:
Add product to your Wishlist

Description

Technical details

Load capacity: 120.0 kg
Knuckle length: 105.0 mm
Knuckle diameter: 24.0 mm
Pin diameter: 10.0 mm

Suitable for

Type of door leaf: PVCu
Rebate: rebated

Additional information

Finish

RAL 9016 Traffic White, RAL 9006 White Alu, clear lc
